NITD20M32
ActiveEaton - Electronics Division
FUSE CRTRDGE 32A 550VAC CYLINDR
NITD20M32
ActiveEaton - Electronics Division
FUSE CRTRDGE 32A 550VAC CYLINDR
Description
General part information
NITD20M32

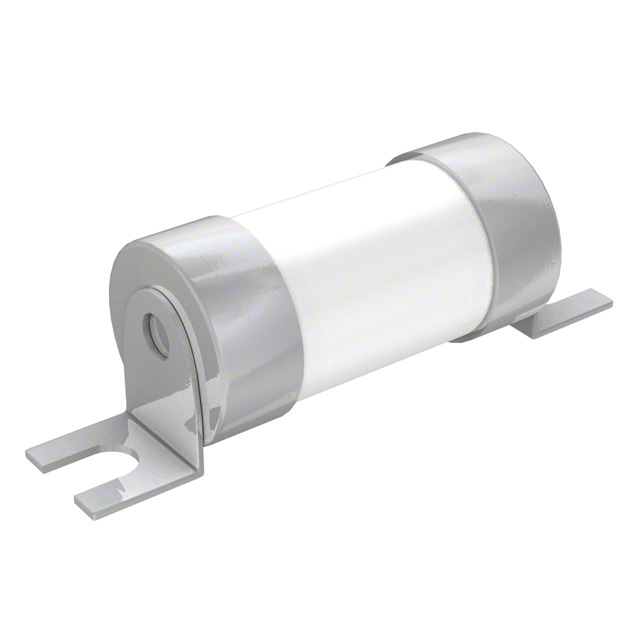

32A 550 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | NITD20M32 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 32 A |
| Fuse Type | Cartridge |
| Melting I²t | 720 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.539 in |
| Size / Dimension Length | 1.362 in |
| Voltage Rating - AC | 550 V |
