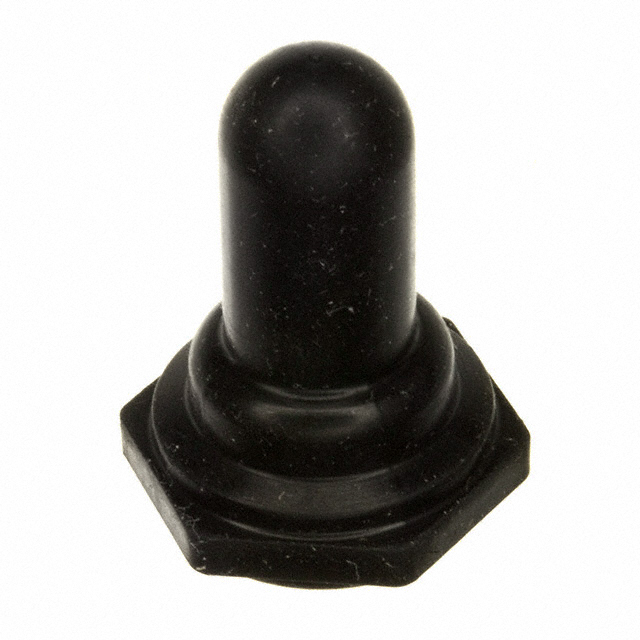

C1131/28
ActiveAPM HEXSEAL
TOGGLE FULL BOOT BLACK
Deep-Dive with AI
Search across all available documentation for this part.
C1131/28
ActiveAPM HEXSEAL
TOGGLE FULL BOOT BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C1131/28 | C1131 Series |
|---|---|---|
| Actuator Diameter [diameter] | 5.55 mm | 5.31 - 5.55 mm |
| Actuator Diameter [diameter] | 0.219 in | 0.209 - 0.219 " |
| Color | Black | Black, Gray |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -62 °C | -62 °C |
| Size / Dimension [z] | 23.8 mm | 21.6 - 23.8 mm |
| Size / Dimension [z] | 0.937 " | 0.85 - 0.937 " |
| Thread Size | 15/32-32 NS-2B | M12x0.75, 15/32-32 NS-2B |
| Type | Full Boot, Toggle | Full Boot, Toggle |
C1131 Series
SWITCH ACCESSORIES / CAPS ROHS
| Part | Color | Type | Material | Thread Size | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [z] | Ingress Protection | Actuator Diameter [diameter] | Actuator Diameter [diameter] | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL C1131/41 17 | Black | Full Boot, Toggle | Silicone Rubber | M12x0.75 | Front of Panel | -62 °C | 204 °C | 21.6 mm | 0.85 " | IP66/IP68 | 0.209 " | 5.31 mm | Multiple Series |
APM HEXSEAL C1131/28 | Black | Full Boot, Toggle | Silicone Rubber | 15/32-32 NS-2B | Front of Panel | -62 °C | 204 °C | 23.8 mm | 0.937 " | IP66/IP68 | 0.219 in | 5.55 mm | Multiple Series |
APM HEXSEAL C1131/28 1 | Gray | Full Boot, Toggle | Silicone Rubber | 15/32-32 NS-2B | Front of Panel | -62 °C | 204 °C | 23.8 mm | 0.937 " | IP66/IP68 | 0.219 in | 5.55 mm | Multiple Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.77 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.49 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.42 | |||
| 1000 | $ 2.04 | |||
Description
General part information
C1131 Series
TOGGLE FULL BOOT BLACK
