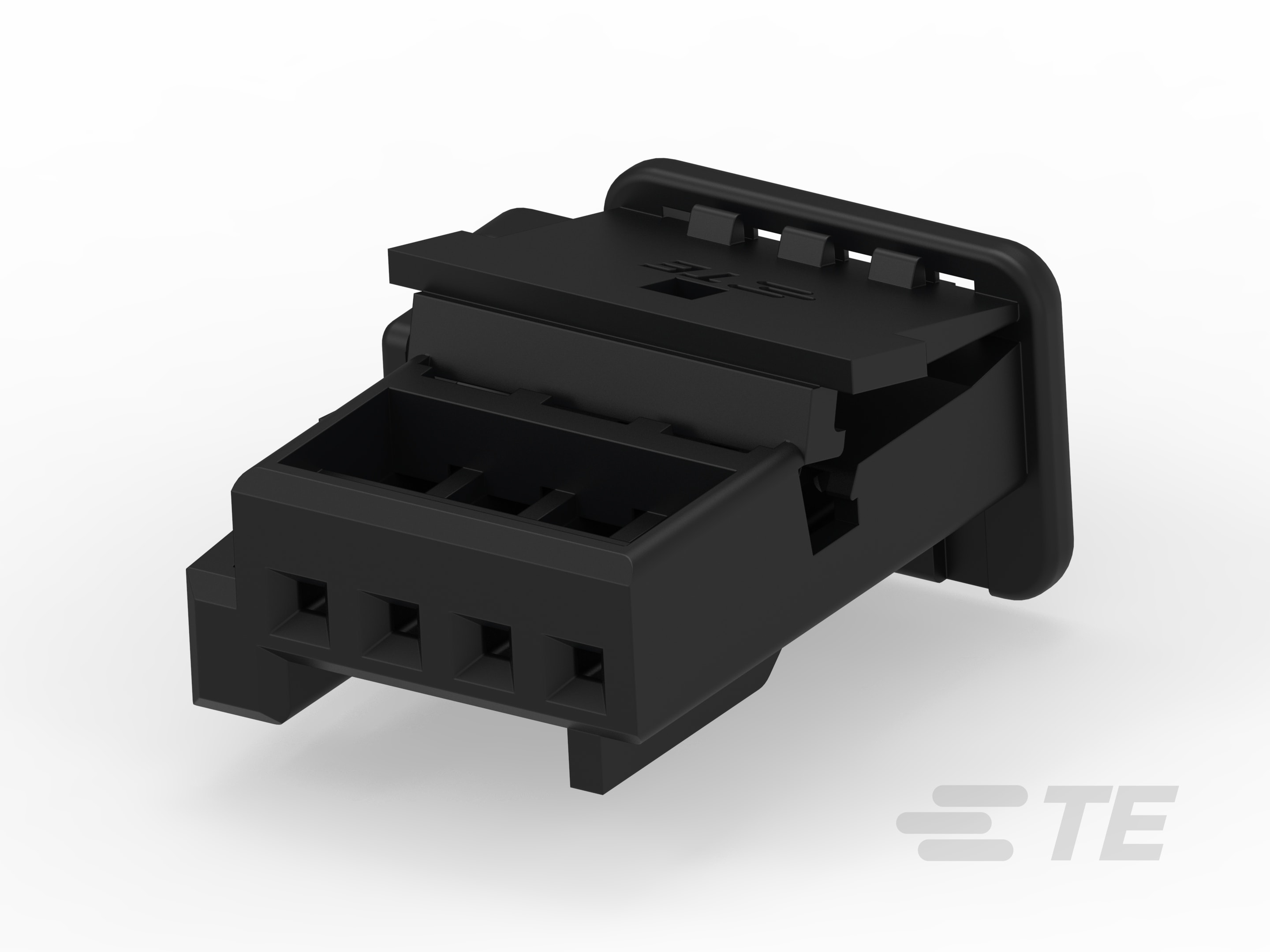

1379029-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
1379029-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
Description
General part information
1379029-1
4 Position Housing, Housing for Female Terminals, Wire-to-Device, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1379029-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Retainer |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
