1-2203571-0
ActiveTE Connectivity AMP Connectors

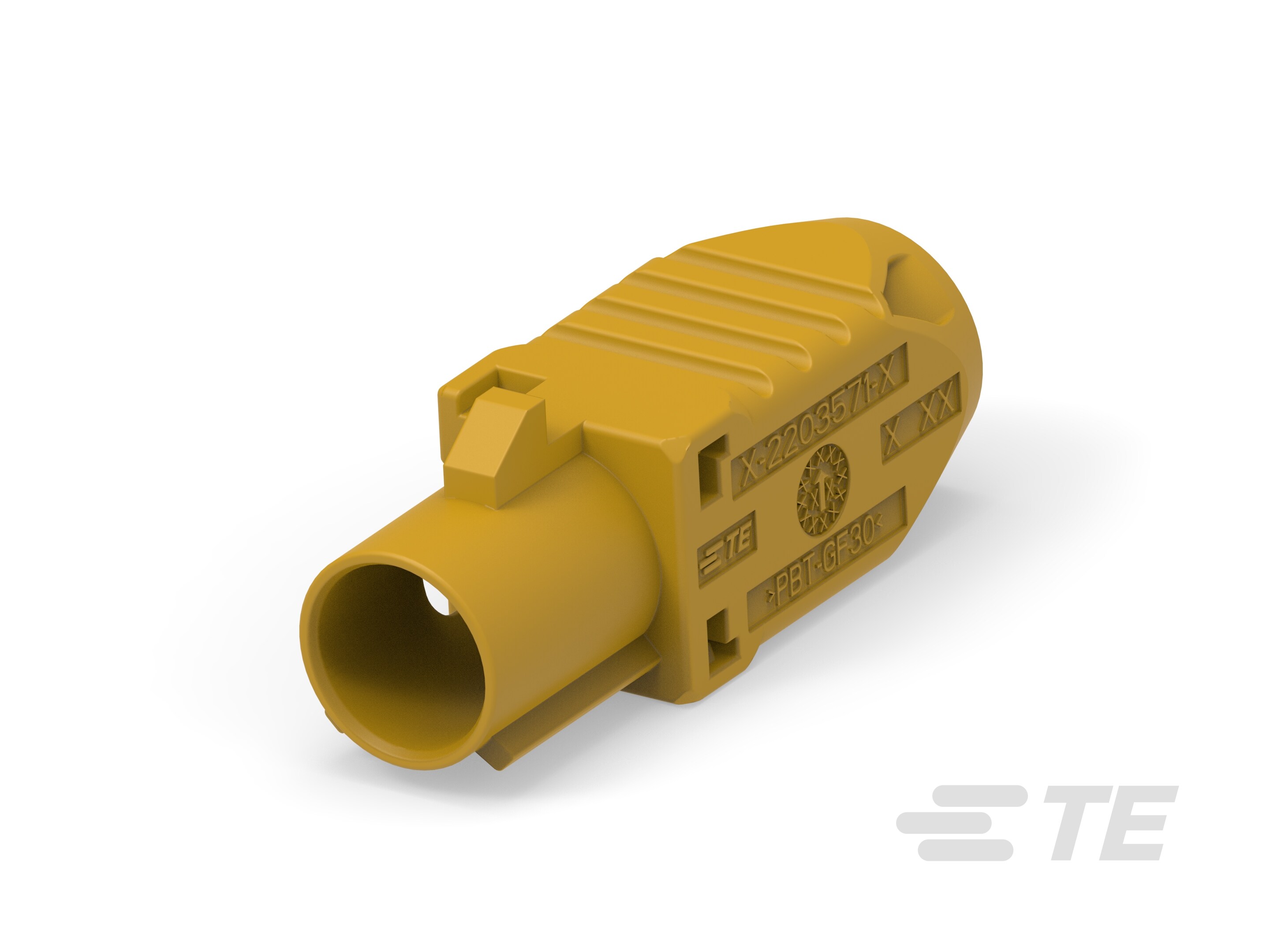

HOUSING, INLINE MALE, FAKRA
1-2203571-0
ActiveTE Connectivity AMP Connectors
HOUSING, INLINE MALE, FAKRA
Description
General part information
FAKRA RF Connector System Series
Cable-to-Cable, 180° Cable Exit, 1 Position, K Code, Housing for Male Terminals, Crimp, FAKRA RF Connector System, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2203571-0 |
|---|---|
| Accessory Type | Housing |
| Body Material | Polybutylene Terephthalate, Polyester, PBT |
| Color | Curry |
| Color Count | 1 count |
| Connector Style | Fakra, SMB |
| Features | Code K |
| For Use With/Related Products | Fakra Male Terminals, SMB |
