210613023
ActiveWürth Elektronik

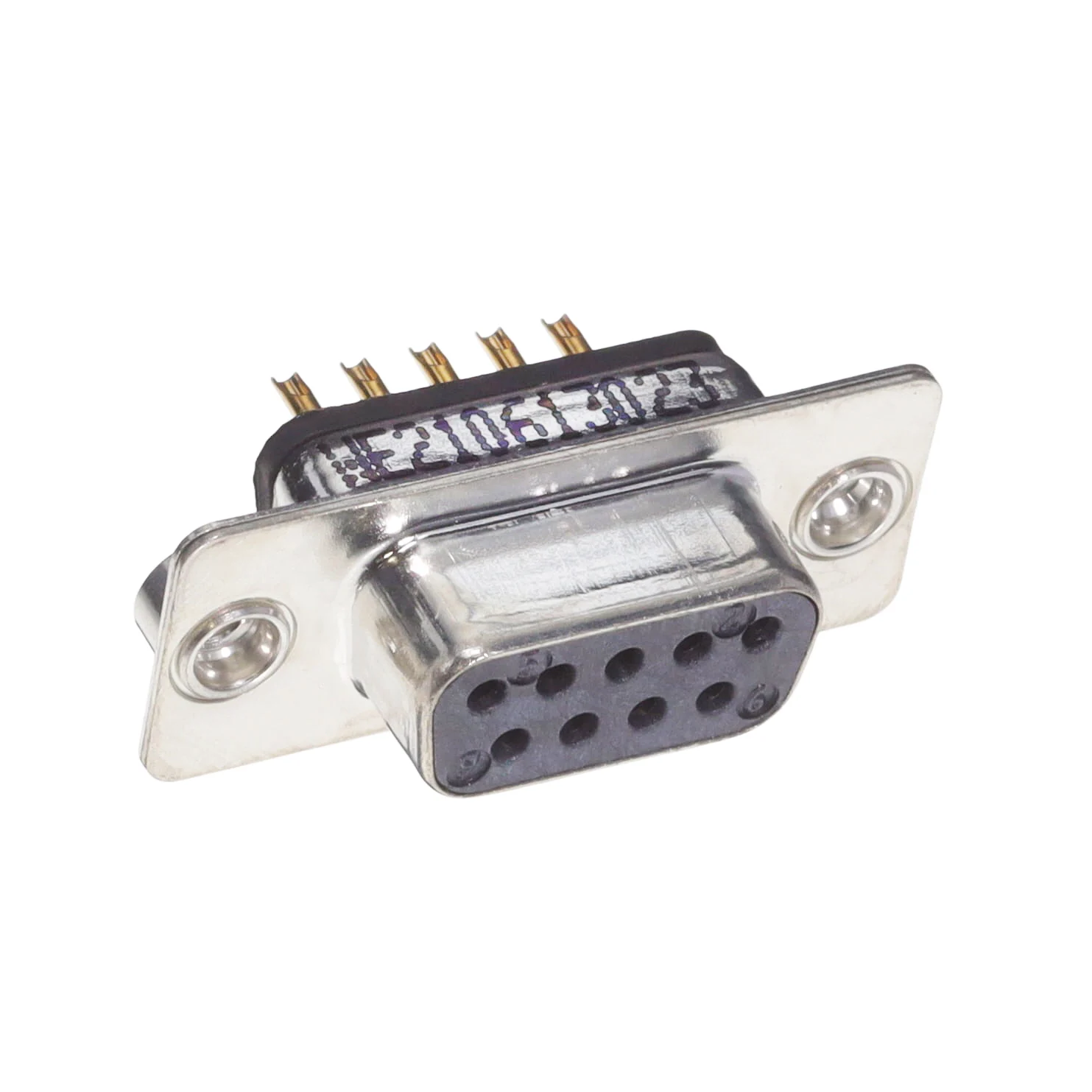

CONN D-SUB RCPT 9POS SOLDER CUP
210613023
ActiveWürth Elektronik
CONN D-SUB RCPT 9POS SOLDER CUP
Description
General part information
210613023
CONN D-SUB RCPT 9POS SOLDER CUP
Technical Specifications
Parameters and characteristics for this part
| Specification | 210613023 |
|---|---|
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Type | Signal |
| Current Rating | 7.5 A |
| Features | Filter |
| Finish | Tin Plated |
| Flange Feature | Board Side (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder Cup |
