SPP-250-LLPL

Active

Amphenol Times Microwave Systems

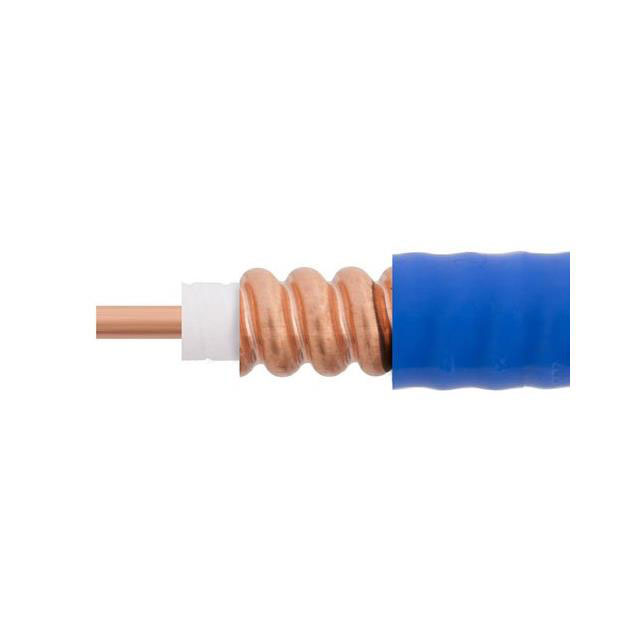

SPP-250-LLPL 1/4" CORRU LOW FOOT

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

SPP-250-LLPL 1/4" CORRU LOW FOOT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPP-250-LLPL	SPP Series

Cable Type	Coaxial - Plenum	Coaxial - Plenum
Conductor Material	Copper, Bare	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	4.83 mm	4.83 - 9.4 mm
Dielectric Diameter [diameter]	0.19 in	0.19 - 0.37 in
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.28 in	0.28 - 0.5 in
Jacket (Insulation) Diameter [diameter]	7.11 mm	7.11 - 12.7 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue	Blue
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Material	Copper, Bare	Copper, Bare
Spool Size	500 '	500 '
Spool Size	152.4 m	152.4 m
VoP, Velocity of Propagation	76	76

SPP-375-LLPL 3/8" CORRUGATED LOW

Part	Jacket (Insulation) Material	Jacket Color	VoP, Velocity of Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Shield Material	Cable Type	Conductor Strand	Length	Spool Size	Spool Size
Amphenol Times Microwave Systems SPP-375-LLPL	Fluorinated Ethylene-Propylene (FEP)	Blue	76	-55 °C	200 °C	Polytetrafluoroethylene (PTFE)	10.21 mm	0.402 in	50 Ohms	7.24 mm	0.285 in	Aluminum, Copper Coated	Copper, Bare	Coaxial - Plenum
Amphenol Times Microwave Systems SPP-500-LLPL	Fluorinated Ethylene-Propylene (FEP)	Blue	76	-55 °C	200 °C	Polytetrafluoroethylene (PTFE)	12.7 mm	0.5 in	50 Ohms	9.4 mm	0.37 "	Aluminum, Copper Coated	Copper, Bare	Coaxial - Plenum
Amphenol Times Microwave Systems SPP-250-LLPL	Fluorinated Ethylene-Propylene (FEP)	Blue	76	-55 °C	200 °C	Polytetrafluoroethylene (PTFE)	7.11 mm	0.28 in	50 Ohms	4.83 mm	0.19 in	Copper, Bare	Copper, Bare	Coaxial - Plenum	Solid	Enter Number of Feet in Order Quantity	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial - Plenum Cable Enter Number of Feet in Order Quantity 50 Ohms
