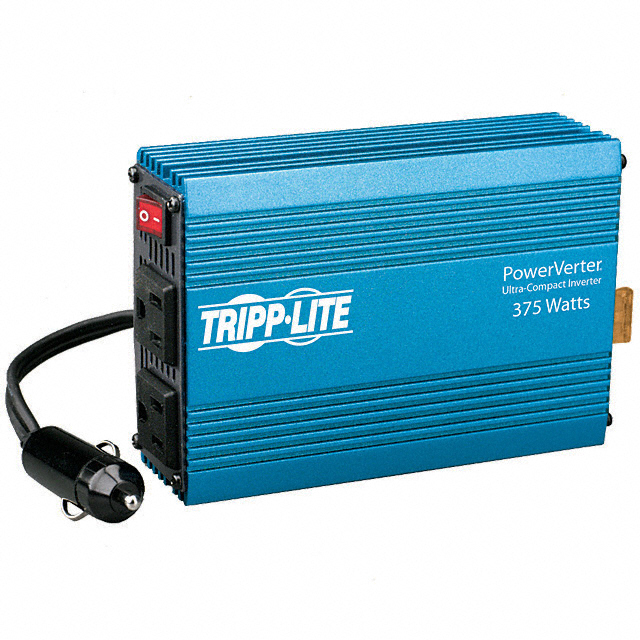

PV375
ActiveDC/AC INVERTER, POWERVERTER, ITE, 12 VDC, 2 OUTLETS, 120 VAC, 375 W
PV375
ActiveDC/AC INVERTER, POWERVERTER, ITE, 12 VDC, 2 OUTLETS, 120 VAC, 375 W
Description
General part information
PV375
The PV375 is a 120V/375W 2-outlet ultra-compact car AC/DC Inverter with aluminum or sheet metal construction. Continuously supplies up to 375W of 120VAC power to 2AC outlets from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3ft cable provides 1-step installation. Portable and compact, the inverter design is among the most rugged to its lightweight metal casing.
Technical Specifications
Parameters and characteristics for this part
| Specification | PV375 |
|---|---|
| AC Outlets (Count) | 2 count |
| Connector - AC Output | NEMA 5-15R |
| Connector - Voltage Input | Cigarette Lighter Plug |
| Power - Output Continuous | 375 W |
| Power - Output Surge | 600 W |
| Region Utilized | North America |
| Remote Capability | No |
| Size Height | 2 in |
| Size Length | 7 " |
| Size Width | 4.25 in |
| Type | Inverter |
| Voltage - Input | 12 V |
| Voltage - Output | 120 V |
| Weight | 2.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
