Y16070R30000F9R
ActiveVPG Foil Resistors
RES 0.3 OHM 1/2W 2516 WIDE
Y16070R30000F9R
ActiveVPG Foil Resistors
RES 0.3 OHM 1/2W 2516 WIDE
Description
General part information
Y16070R30000F9R

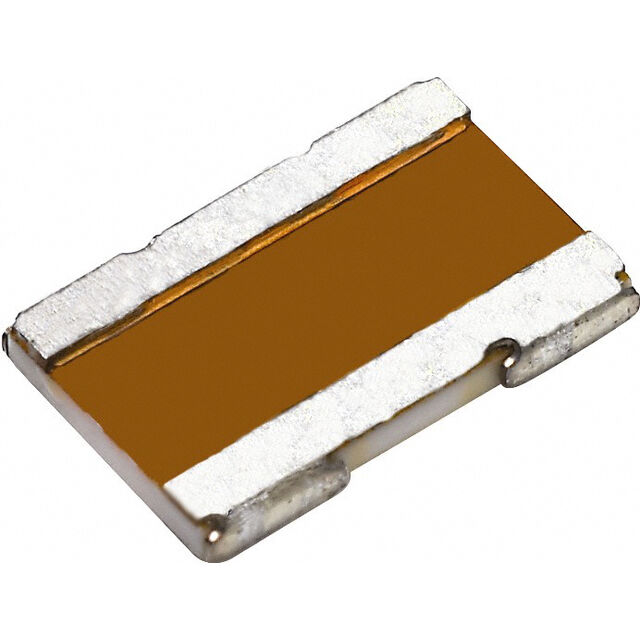

300 mOhms ±1% 0.5W, 1/2W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y16070R30000F9R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive, Current Sense |
| Height - Seated (Max) | 0.04 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Wide 2516 (6440 Metric), 1625 |
| Package Name | SMD |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 0.3 Ohms |
| Size / Dimension Length | 0.16 in |
| Size / Dimension Width | 0.25 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 1 % |
