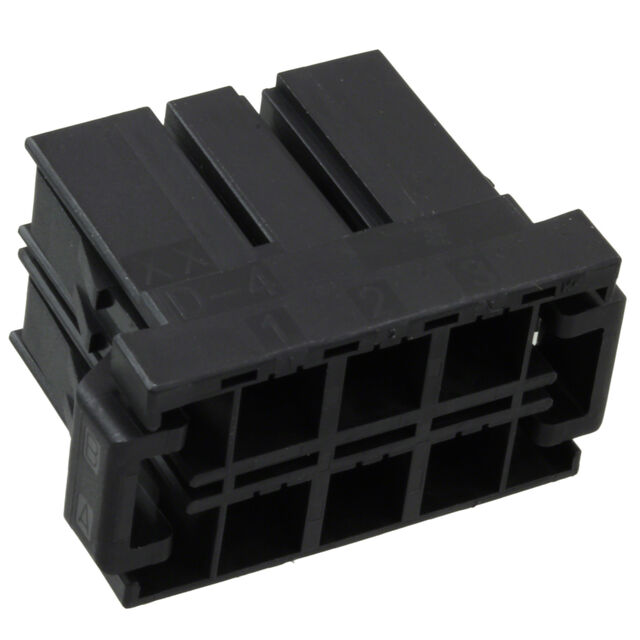

Specification	1-1903329-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyester, Thermoplastic, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Row Spacing	0.346 in

Dynamic 4000 Series Series

Part	Contact Finish	Type	Contact Finish Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Termination	Pin or Socket	Voltage Rating	Voltage Rating (Type)	Connector Type	Style	Contact Finish Thickness - Mating	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Contact Type	Insulation Height	Fastening Type	Number of Positions	Number of Positions Loaded	Number of Rows	Insulation Material	Material Flammability Rating	Contact Shape	Shrouding	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Pitch - Mating	Insulation Color	Features	Contact Length - Post	Color	Pitch	Row Spacing	Note	For Use With/Related Products	Accessory Type
TE Connectivity AMP Connectors 1-2040586-1	Gold	Power	15 µin	20.5 AWG	16 AWG	Crimp	Tab
TE Connectivity AMP Connectors 2-1903328-2								600 V	DC	Header	Board Cable/Wire	15 µin	Copper Alloy	-55 °C	105 °C	Solder	Tab	0.409 in	Push-Pull	2	All	1	Glass Filled Polyester Thermoplastic	UL94 V-0	Rectangular	Shrouded - 4 Wall	Gold	Right Angle Through Hole	Tin	0.25 in	Black	Board Lock	0.134 in
TE Connectivity AMP Connectors 3-1903330-3						Crimp				Plug				-55 °C	105 °C		Tab		Push-Pull	6		2	Glass Filled Polyester					Free Hanging (In-Line)						Black	0.25 in	0.346 in
TE Connectivity AMP Connectors 1-1747535-3						Crimp				Plug				-55 °C	105 °C		Tab			3		1	Glass Filled Polyester Thermoplastic					Panel Mount				Mounting Flange		Black			Contacts Not Included
TE Connectivity AMP Connectors 2-1747276-4						Crimp				Receptacle				-55 °C	105 °C		Female Socket		Latch Lock	4		1	Glass Filled Thermoplastic					Free Hanging (In-Line)						Black
TE Connectivity AMP Connectors 1-1747500-2	Gold	Power	15 µin	14 AWG	12 AWG	Crimp	Tab
TE Connectivity AMP Connectors 900167-1																																						Dynamic Series	Screws
TE Connectivity AMP Connectors 3-1903329-3						Crimp				Receptacle				-55 °C	105 °C		Male Pin		Latch Lock	6		2	Glass Filled Polyester Thermoplastic					Free Hanging (In-Line)						Black	0.25 in	0.346 in	Contacts Not Included
TE Connectivity AMP Connectors 1-2040016-2	Gold	Power	15 µin	20.5 AWG	16 AWG	Crimp	Tab
TE Connectivity AMP Connectors 5-1903328-3								600 V	DC	Header	Board Cable/Wire	15 µin	Copper Alloy	-55 °C	105 °C	Solder	Tab	0.409 in	Push-Pull	3	All	1	Glass Filled Polyester Thermoplastic	UL94 V-0	Rectangular	Shrouded - 4 Wall	Gold	Right Angle Through Hole	Tin	0.25 in	Black	Board Lock	0.134 in
