Description
General part information

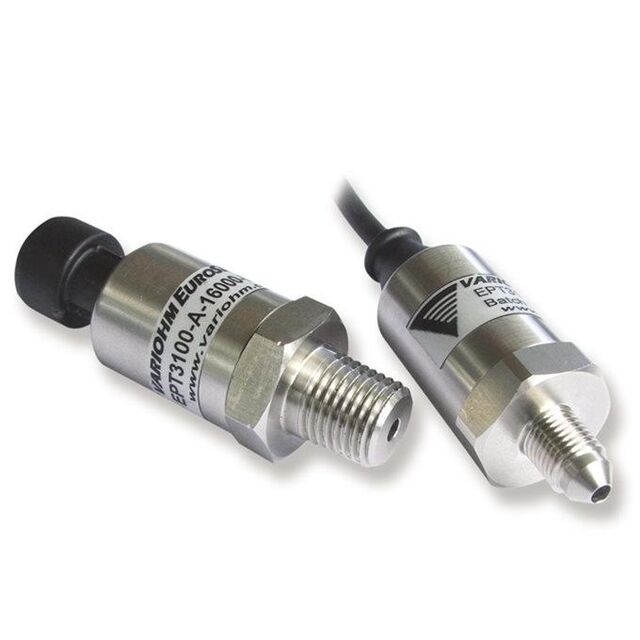

EPT3100-H-16000-B-5-A (94069021)
Pressure Sensor
Technical Specifications
Parameters and characteristics for this part
| Specification | EPT3100-H-16000-B-5-A (94069021) |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 4641.21 PSI |
| Operating Pressure | 2320.6 PSI |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Code | M12 |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Cable |
| Voltage - Supply | 5 VDC |
