Description
General part information

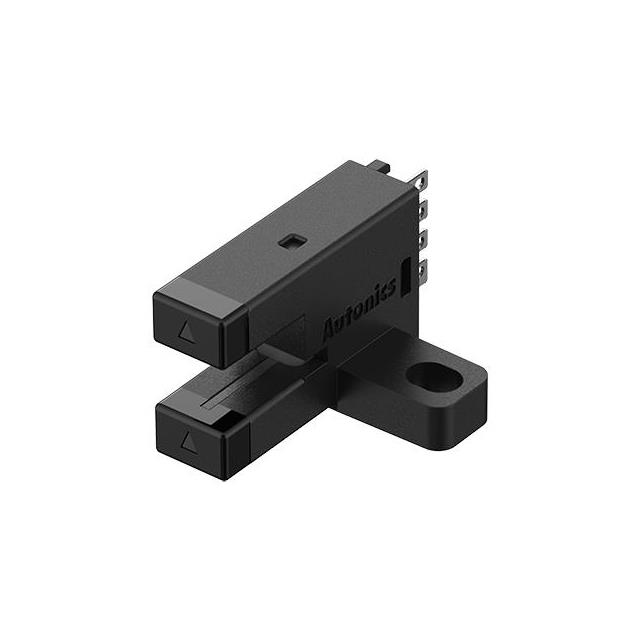

BS5-T2M-P
Through-Beam Optical Sensor 0.197" (5mm) PNP - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BS5-T2M-P |
|---|---|
| Connection Method | Connector |
| Ingress Protection | IP50 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 940 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | Light-ON\Dark-ON, PNP - Open Collector, Light-ON, PNP - Dark-ON |
| Response Time | 20 µs |
| Sensing Distance | 0.197 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 5 V |
