Rectangular Cable Assemblies

2205064-3

Active

TE Connectivity AMP Connectors

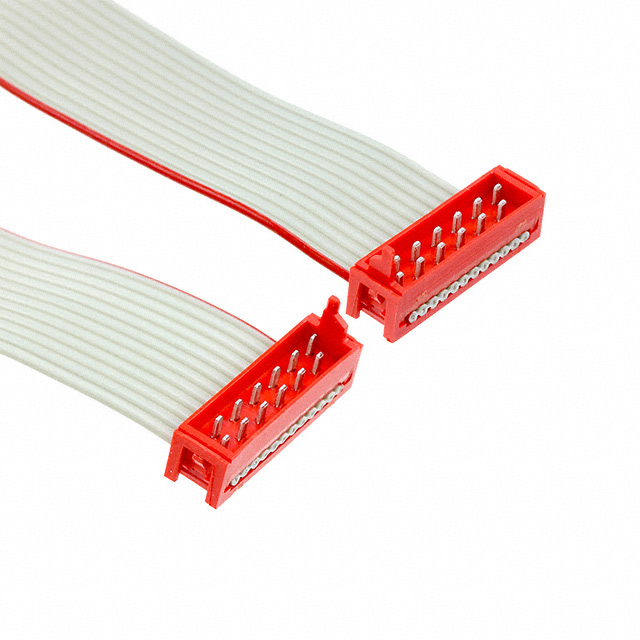

CABLE ASSEMBLY PATCH CORD 0.2M 28AWG WIRE TO BOARD TO WIRE TO BOARD 12 TO 12 POS M-M CRIMP-CRIMP

Find alt

Alpha

Rectangular Cable Assemblies

2205064-3

Active

TE Connectivity AMP Connectors

CABLE ASSEMBLY PATCH CORD 0.2M 28AWG WIRE TO BOARD TO WIRE TO BOARD 12 TO 12 POS M-M CRIMP-CRIMP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Micro-MaTch Industrial Series

MICRO-MATCH MOW Cable Assembly, 12 Positions, .2 m [.656 ft], Gray Cable, Equalized, 28 AWG, 159.8 – 159.88 mm² Wire, MICRO-MATCH MOW Plug End A

Technical Specifications

Parameters and characteristics for this part

Specification	2205064-3

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Plug to Plug
Length	0.656 ft
Number of Positions	12
Number of Rows	2

Micro-MaTch Industrial Series

...

Part	Length	Number of Positions	Number of Rows	Color	Connector Type	Cable Termination	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Mounting Type	Contact Type	Contact Length - Post	Insulation Color	Style	Termination	Number of Positions Loaded	Row Spacing - Mating	Insulation Height	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Pitch - Mating	Features	Wire Gauge	Wire Type	Contact Finish	Row Spacing	Pitch	Contact Material	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Shape	Current Rating
TE Connectivity AMP Connectors 2205064-1	0.246 ft	12	2	Gray Ribbon	Plug to Plug	IDC
TE Connectivity AMP Connectors 7-100400-8		8	2		Receptacle		Tin	Tin	UL94 V-0	Right Angle Through Hole	Forked	0.122 in	Red	Board Board or Cable	Kinked Pin Solder	All	0.1 in	0.228 in	Push-Pull	-40 °C	105 °C	100 VAC	0.1 in
TE Connectivity AMP Connectors 2205077-1	0.246 ft	20	2	Gray Ribbon	Plug to PCB	IDC
TE Connectivity AMP Connectors 7-338069-4		4	2		Receptacle		Tin	Tin	UL94 V-0	Surface Mount	Forked		Red	Board Board or Cable	Solder	All	0.1 in	0.209 in	Friction Lock	-40 °C	105 °C	100 VAC	0.1 in	Pick and Place
TE Connectivity AMP Connectors 100411-8		8	2		Receptacle		Tin	Tin	UL94 V-0	Through Hole	Forked	0.094 in	Red	Board Board or Cable	Solder	All	0.1 in	0.197 in	Push-Pull	-40 °C	105 °C	100 VAC	0.1 in
TE Connectivity AMP Connectors 8-215083-6		16	2	Red	Plug	IDC				Free Hanging (In-Line)	Male Pin													Feed Through	28 AWG	Ribbon Cable	Tin	0.059 in	0.1 in
TE Connectivity AMP Connectors 1-100400-6		16	2		Receptacle		Tin	Tin	UL94 V-0	Right Angle Through Hole	Forked	0.122 in	Red	Board Board or Cable	Kinked Pin Solder	All	0.1 in	0.228 in	Push-Pull	-40 °C	105 °C	100 VAC	0.1 in							Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester
TE Connectivity AMP Connectors 8-100400-4		14	2		Receptacle		Tin	Tin	UL94 V-0	Right Angle Through Hole	Forked	0.122 in	Red	Board Board or Cable	Kinked Pin Solder	All	0.1 in	0.228 in	Push-Pull	-40 °C	105 °C	100 VAC	0.1 in
TE Connectivity AMP Connectors 2205062-1	0.246 ft	8	2	Gray Ribbon	Plug to Plug	IDC
TE Connectivity AMP Connectors 8-338728-8		18	2		Header		Tin	Tin	UL94 V-0	Surface Mount	Male Pin		Red	Board Board or Cable	Solder	All		0.181 in	Latch Lock	-40 °C	105 °C	230 V	0.1 in	Pick and Place						Brass	Glass Filled Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	118.1 µin	Rectangular	1.5 A
