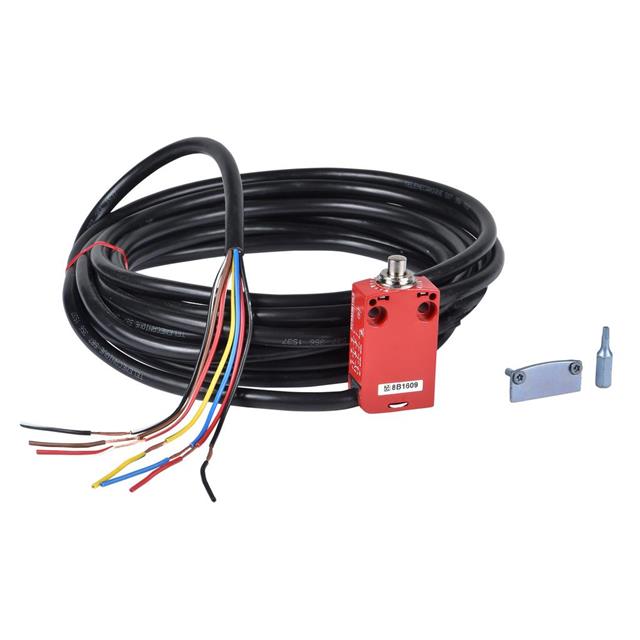

XCSM3902L5
ActiveSCHNEIDER ELECTRIC
SWITCH SAFETY LMT 3PST 1.5A 240V
XCSM3902L5
ActiveSCHNEIDER ELECTRIC
SWITCH SAFETY LMT 3PST 1.5A 240V
Description
General part information
XCSM3902L5
Switch 3PST-2NC/1NO Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSM3902L5 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA, 1.5 A |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP68 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
