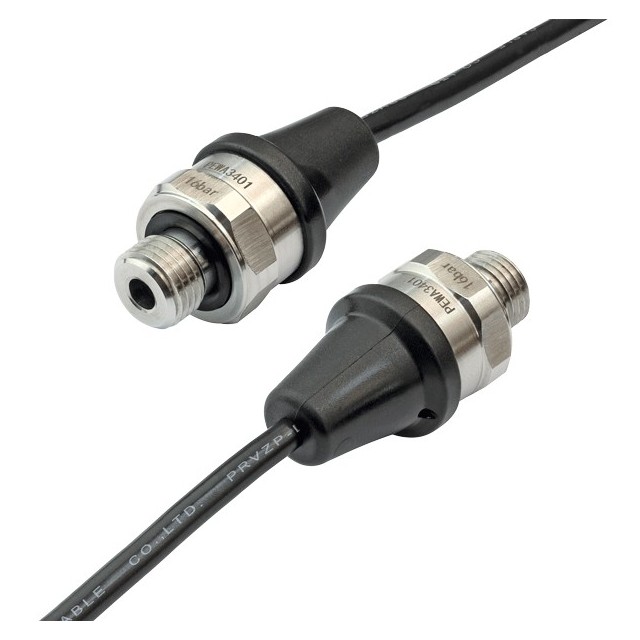

Specification	PEWA3403[0...2.5]MPa-V6KB2C2

Accuracy	1 %
Applications	Industrial
Features	Temperature Compensated, Amplified Output
Maximum Pressure	725.19 PSI
Operating Pressure	362.59 PSI
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.5 V
Package / Case	Cylinder, Metal
Port Diameter	0.25 "
Port Feature	G
Port Gender	Male
Port Style	Threaded
Pressure Type	Gauge
Termination Length	0.5 m
Termination Style	Cable
Voltage - Supply	5 VDC
