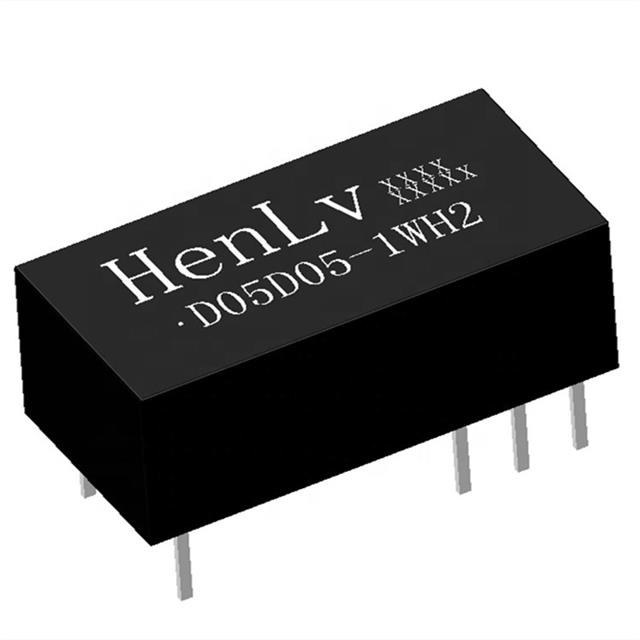

D12D09-1WH2
ActiveHenLv Power
DC DC CONVERTER 1W
D12D09-1WH2
ActiveHenLv Power
DC DC CONVERTER 1W
Description
General part information
D12D09-1WH2
DC DC Converter Output - Input
Technical Specifications
Parameters and characteristics for this part
| Specification | D12D09-1WH2 |
|---|---|
| Applications | Industrial |
| Approval Agency | CE |
| Current - Output (Max) | 55 mA |
| Efficiency (Maximum) | 88 % |
| Efficiency (Minimum) | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.28 in |
| Size / Dimension Length | 0.8 in |
| Size / Dimension Width | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 12.6 V |
| Voltage - Input (Min) | 11.4 V |
| Voltage - Output 1 | 9 V |
| Voltage - Output 2 | -9 V |
