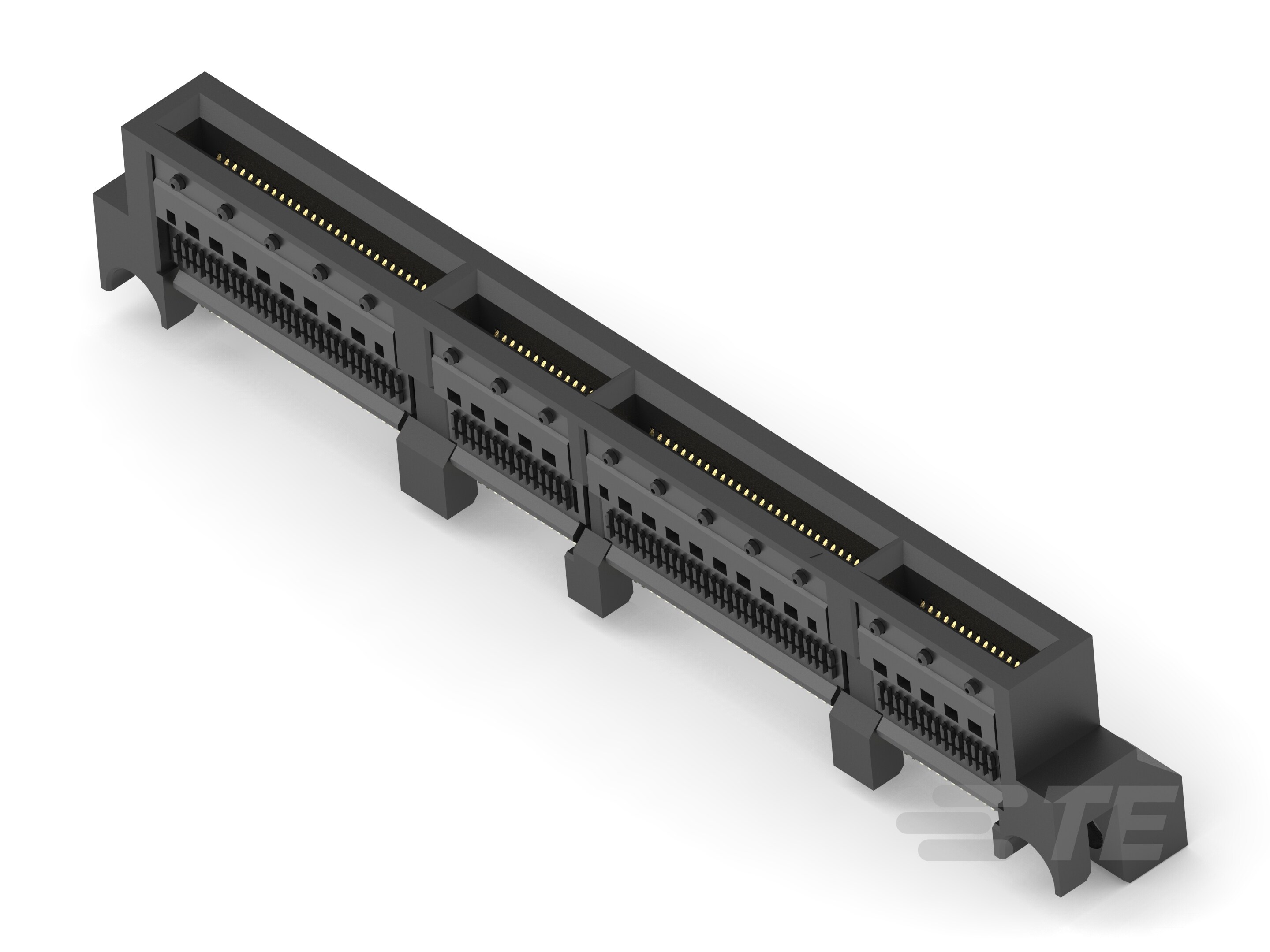

1-2340321-2
ActiveTE Connectivity AMP Connectors
ASSY STRADDLE MOUNT 168P 076 SLIVER 2.0
1-2340321-2
ActiveTE Connectivity AMP Connectors
ASSY STRADDLE MOUNT 168P 076 SLIVER 2.0
Description
General part information
1-2340321-2
Sliver for SFF-TA-1002, PCB Edge Card, Straddle Mount, 168 Position, Surface Mount, Sliver for SFF-TA-1002, Internal I/O Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2340321-2 |
|---|---|
| Card Thickness | 0.076 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Flange Feature | Straddle Mount Opening, Unthreaded |
| Flange Feature Opening Size | 0.094 in |
| Gender | Female |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Positions | 168 |
| Number of Rows | 2 |
| Pitch | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
