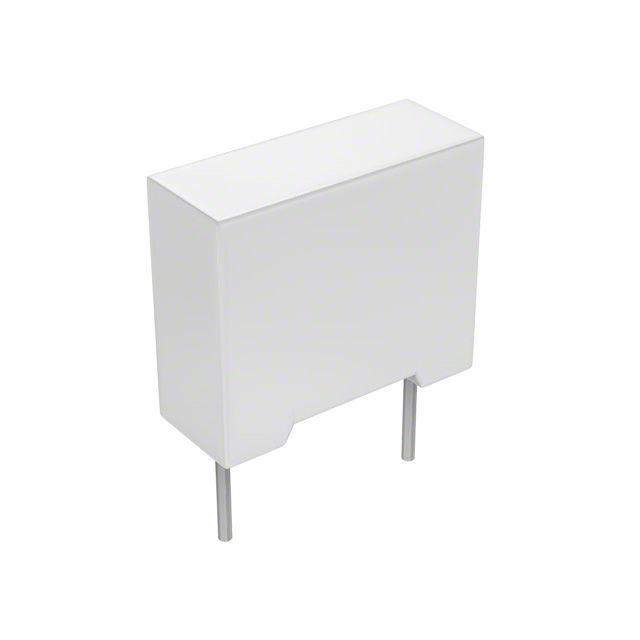

171682K630D-F
ActiveCornell Dubilier Knowles
CAP FILM 6800PF 10% 630VDC RAD
171682K630D-F
ActiveCornell Dubilier Knowles
CAP FILM 6800PF 10% 630VDC RAD
Description
General part information
171682K630D-F
6800 pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 171682K630D-F |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 6800 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
