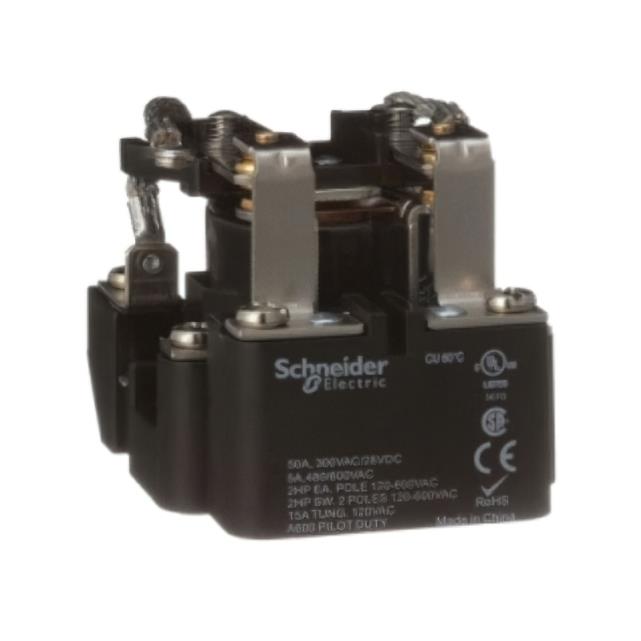

199APX-34
General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 199APX-34 |
|---|---|
| Approval Agency | CE, UL, CSA |
| Coil Current | 461.5 mA |
| Coil Resistance | 260 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 120 V |
| Contact Form | DPST-NO |
| Contact Rating (Current) | 50 A |
| Form A Count | 2 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 12 VAC |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -55 °C |
| Relay Type | General Purpose |
| Switching Voltage AC (Max) | 600 VAC |
| Switching Voltage DC (Max) | 28 VDC |
| Termination Style | Screw Terminal |
