TAZF106K020CWSB0900
ActiveKYOCERA AVX
TAZ 50+ COMM ROHS COMPLIANT: YES
TAZF106K020CWSB0900
ActiveKYOCERA AVX
TAZ 50+ COMM ROHS COMPLIANT: YES
Description
General part information
TAZF106K020CWSB0900

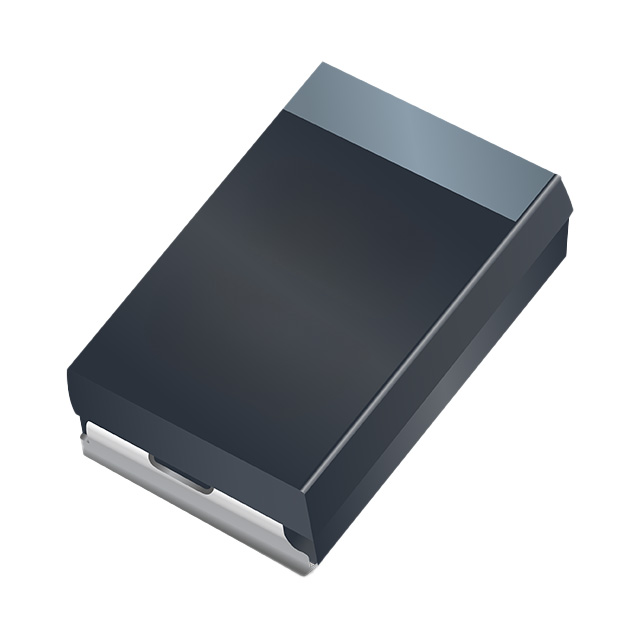

10 µF Molded Tantalum Capacitors 20 V 2214 (5634 Metric) 3Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TAZF106K020CWSB0900 |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 3 Ohm |
| Failure Rate (Percent) | 0.1 % |
| Failure Rate Rating | B |
| Features | High Reliability |
| Height - Seated (Max) | 0.085 in |
| Manufacturer Size Code | F |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2214 (5634 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.135 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 20 V |
