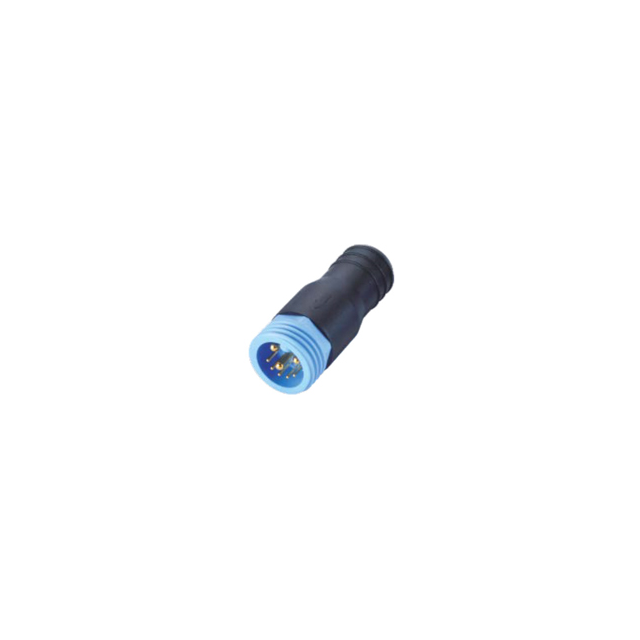

Specification	IPM20-H8-M-TM

Accessory Type	Terminator
Color	Blue, Black
Features	Backshell, Waterproof, Dust Tight
For Use With/Related Products	M20 Connector
Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	M20-8

IPM Series

...

Part	2nd Connector Type	1st Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Cable Material	Length	Assembly Configuration	Color	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Orientation	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Gender	Cable Type	Usage	Shielding	Features	Style	Number of Positions	Connector Type	Number of Contacts	Mounting Type	Contact Finish	Voltage Rating	Ratings	Termination	Current Rating	Contact Material	Material	Shell Size - Insert	For Use With/Related Products	Accessory Type	Orientation	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Cable Opening (Min)	Cable Opening (Max)	Shell Material	Shell Finish	Backshell Material, Plating	Fastening Type	Voltage Rating (Type)	Contact Finish - Mating	Insert Material	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert (Code)	2nd Connector Gender	2nd Connector Orientation	2nd Connector Number of Positions	2nd Connector Mounting Type	Mounting Feature
PEI-Genesis IPM12-A5-MRA-WL-1.0	Wire Leads	Receptacle Right Angle	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)	3.28 ft	Standard	Black	5 positions	M12	A	All	Free Hanging (In-Line)	Male Pins	Round	Industrial Environments	Unshielded
PEI-Genesis IPMOD-45WPP-3M						9.84 ft		Black							Round Cable		Unshielded	Circular Threaded Coupling Molded Plugs	Cat5e Industrial Environments - IP67	8	Ethernet Plug to Plug RJ45	8	Bulkhead Panel Mount
PEI-Genesis IPMOD-45WM-FT			Dust Tight Waterproof	IP67													Shielded	Circular Bayonet Coupling		8	Ethernet Plug RJ45	8		Gold	48 V	Cat5e	IDC	1 A	Copper Alloy
PEI-Genesis IPMOD-45WPWP-3M						9.84 ft		Black							Round Cable		Unshielded	Circular Threaded Coupling Molded Plugs	Cat5e Industrial Environments - IP67	8	Ethernet Plug to Plug RJ45	8	Bulkhead Panel Mount
PEI-Genesis IPM12-CAP-F-CA								Black										Contains Strap Dust Tight Internal Threads Waterproof												Glass Filled Nylon Polyamide (PA)	M12	M12 Female Connector	Cap (Cover) Protective
PEI-Genesis IPM-M5A4F-FL	Wire Leads	Plug			Polyurethane (PUR)	1.64 ft	Standard	Black	4 positions	M5	A	All	Free Hanging (In-Line)	Female Sockets	Round	Industrial Environments
PEI-Genesis IPM12-A8M-SCFT			Dust Tight Waterproof	IP67				Black Silver									Unshielded	Backshell		8	Male Pins Receptacle		Free Hanging (In-Line)		30 V		Solder Cup	2 A	Brass		M12-8			A	Industrial	-25 °C	90 °C	Metal	0.157 in	0.217 in	Brass	Nickel	Glass Filled Nylon Polyamide (PA)	Threaded	AC DC	Gold	Thermoplastic Polyurethane TPU
PEI-Genesis IPM12-A8-FM-3.0	Plug	Receptacle	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)	9.84 ft	Standard	Black	8 positions	M12	A	All	Free Hanging (In-Line)	Male Pins	Round	Industrial Environments	Unshielded																															All	M12	Female Sockets	A	8	Free Hanging (In-Line)
PEI-Genesis IPM12-A5M-SC-3			Dust Tight Waterproof	IP67				Silver									Unshielded			5	Male Pins Receptacle		Panel Mount		60 V		Solder Cup	4 A	Brass		M12-5			A	Industrial	-25 °C	90 °C	Metal			Brass	Nickel		Threaded	DC	Gold	Thermoplastic Polyurethane TPU							Bulkhead Front Side Nut
PEI-Genesis IPM8-A8-FWL-1.5U	Wire Leads	Plug	Dust Tight Waterproof	IP67	Polyurethane (PUR)	4.92 ft	Standard	Black	8 positions	M8	A	All	Free Hanging (In-Line)	Female Sockets	Round	Industrial Environments	Unshielded
