FMANMOB1003-RSP
ActiveFairview Microwave
ANTENNA SMA136 MHZ-940 MHZ
FMANMOB1003-RSP
ActiveFairview Microwave
ANTENNA SMA136 MHZ-940 MHZ
Description
General part information
FMANMOB1003-RSP

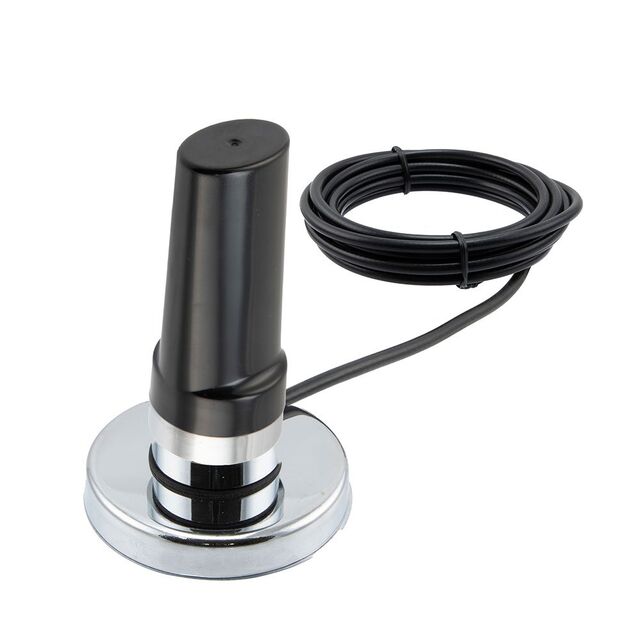

RF ANTENNA Wi-Fi, WLAN Dome RP-SMA Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANMOB1003-RSP |
|---|---|
| Antenna Type | Dome |
| Applications | WLAN, Wi-Fi |
| Cable Length | 3.05 m |
| Features | 3.05m, Cable |
| Frequency (Center/Band) | 538 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 940 MHz |
| Frequency Range (Min) | 136 MHz |
| Gain | 4.5 dBi |
| Height (Max) | 4.7 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| Power - Max | 30 W |
| RF Family/Standard | WiFi |
| Termination | RP-SMA |
| VSWR | 1.5 |
