6-2271128-2
ActiveTE Connectivity AMP Connectors

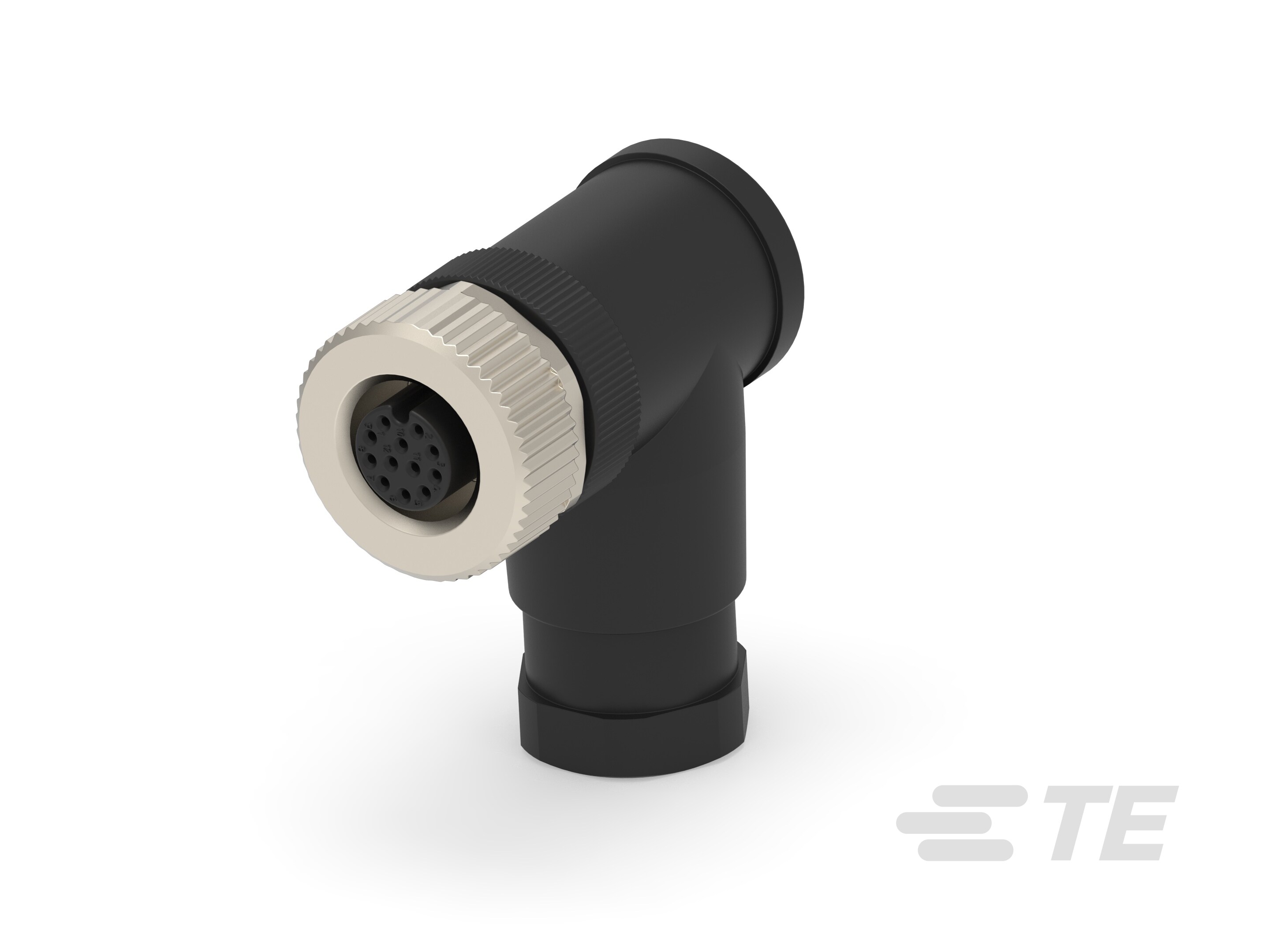

M12, FEMALE, A CODE, R/A, 12P, PG9 (AU)
6-2271128-2
ActiveTE Connectivity AMP Connectors
M12, FEMALE, A CODE, R/A, 12P, PG9 (AU)
Description
General part information
6-2271128-2
12 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Plastic, M12 Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-2271128-2 |
|---|---|
| Cable Opening (Max) | 0.315 in |
| Cable Opening (Min) | 0.236 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating | 2 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Size - Insert | M12-12 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 30 V |
| Voltage Rating (Type) | DC, AC |
