011024WF037

Active

Essentra Components

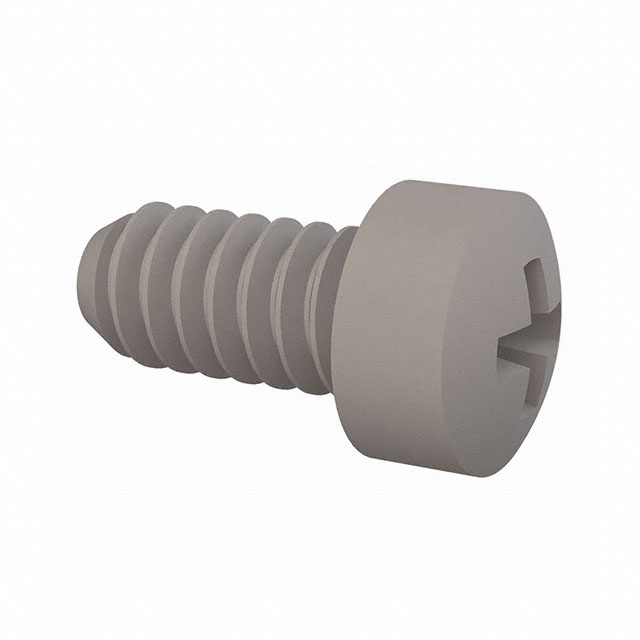

FILLISTER PHILLIPS SCREW 10-24

Deep-Dive with AI

Search across all available documentation for this part.

011024WF037

Active

Essentra Components

FILLISTER PHILLIPS SCREW 10-24

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	011024WF037	011024WF Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	7.68 mm	7.68 mm
Head Diameter [diameter]	0.303 in	0.303 in
Head Height	8.53 mm	8.53 mm
Head Height	0.336 in	0.336 in
Length - Below Head	0.375 "	0.125 - 1 in
Length - Below Head	9.53 mm	0.125 - 9.53 mm
Length - Below Head	0.375 "	0.375 - 38.1 mm
Length - Below Head	-	4.76 - 28.58 mm
Length - Below Head	-	0.188 - 1.5 in
Length - Below Head	-	7.94 mm
Length - Below Head	-	0.313 in
Length - Overall	18.06 mm	13.3 - 18.06 mm
Length - Overall	-	11.71 - 46.63 mm
Length - Overall [x]	0.711 in	0.461 - 1.836 in
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#10-24	#10-24
Type	Machine Screw	Machine Screw

011024WF Series

FILLISTER PHILLIPS SCREW 10-24

Part	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head	Material	Head Diameter [diameter]	Head Diameter [diameter]	Type	Head Height	Head Height	Drive Type	Thread Size	Length - Overall	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Components 011024WF100	Pan Head	1.336 in	33.93 mm	25.4 mm	1 in	Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24
Essentra Components 011024WF037	Pan Head	0.711 in		0.375 "	0.375 "	Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24	18.06 mm	9.53 mm
Essentra Components 011024WF125	Pan Head					Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24			28.58 mm	1.125 in
Essentra Components 011024WF062	Pan Head	0.961 in	24.41 mm	15.88 mm	0.625 in	Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24		0.625 in
Essentra Components 011024WF012	Pan Head	0.461 in	11.71 mm	3.18 mm	0.125 in	Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24		0.125 in
Essentra Components 011024WF075	Pan Head	1.086 in	27.58 mm	19.05 mm	0.75 "	Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24		0.75 "
Essentra Components 011024WF018	Pan Head	0.524 in				Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24	13.3 mm		4.76 mm	0.188 in
Essentra Components 011024WF150	Pan Head	1.836 in	46.63 mm	38.1 mm		Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24				1.5 in
Essentra Components 011024WF031	Pan Head					Nylon	7.68 mm	0.303 in	Machine Screw	8.53 mm	0.336 in	Phillips	#10-24					7.94 mm	0.313 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

Description

General part information

011024WF Series

#10-24 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

No documents available
