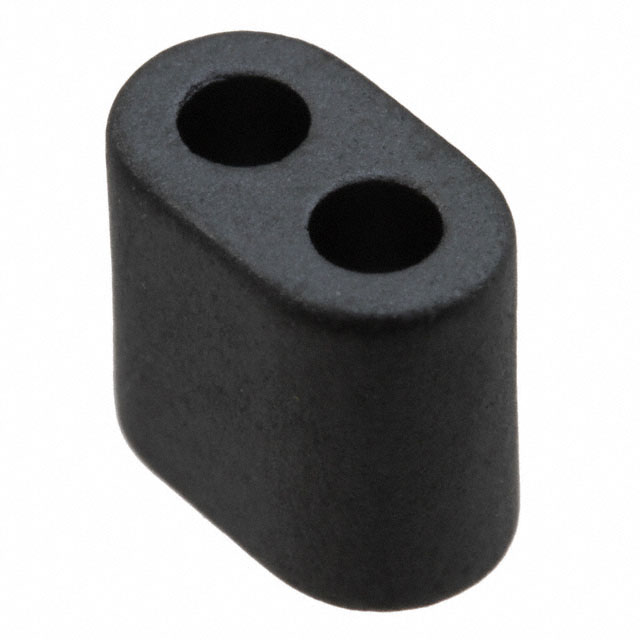

Specification	B62152A0007X030

Core Factor (ΣI/A)	0.75 mm⁻²
Core Factor (ΣI/A) mm⁻¹	0.75 mm⁻¹
Core Hole Count	2
Core Type	Multi-Hole
Effective Area (Ae)	10.2 mm²
Effective Length (le)	7.6 mm
Effective Magnetic Volume (Ve)	78 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.244 in
Inductance Factor (Al)	7.3 µH
Initial Permeability (µi)	4300
Length	0.285 in
Material	N30
Tolerance	30 %
Width	0.165 in
