CL20 200120
ActiveVishay Ametherm
PTC INRUSH CURRENT LIMITER, 20,1
CL20 200120
ActiveVishay Ametherm
PTC INRUSH CURRENT LIMITER, 20,1
Description
General part information
CL20 200120

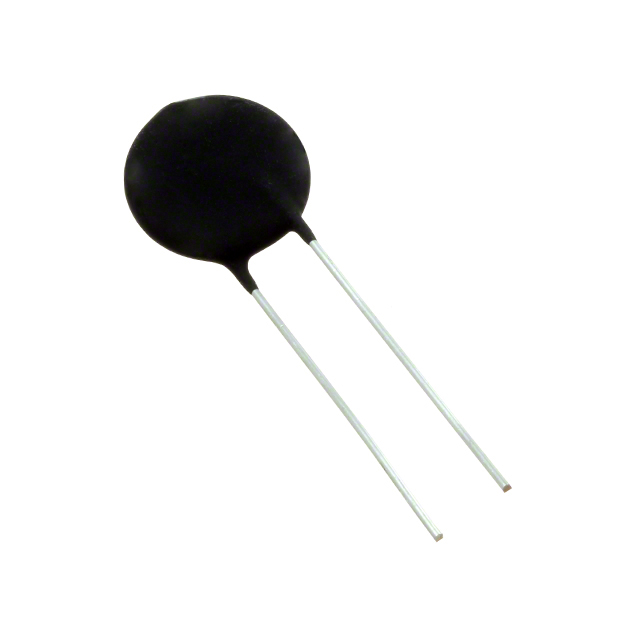

Polymeric PTC Resettable Fuse 680V 300 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CL20 200120 |
|---|---|
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Trip (It) | 600 mA |
| Mounting Type | Through Hole |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 20 Ohms |
| Resistance - Initial (Ri) (Min) | 15 Ohms |
| Resistance - Post Trip (R1) (Max) | 25 Ohms |
| Size / Dimension Diameter | 0.866 in |
| Size / Dimension Thickness | 0.236 in |
| Type | Polymeric |
| Voltage - Max | 680 V |
