DC2922A-A

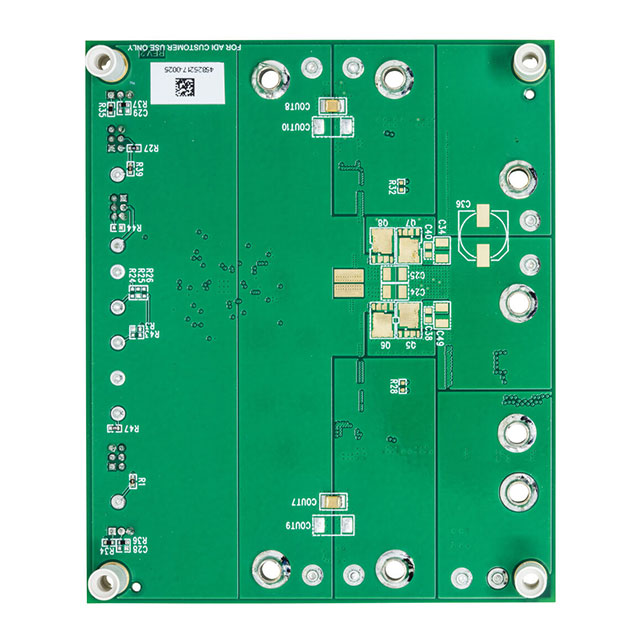

LTC7802 - 2 Non-Isolated Outputs DC/DC, Step Down Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DC2922A-A |
|---|---|
| Contents | Board |
| Current - Output (Max) | 20 A |
| Current - Output (Min) | 15 A |
| Frequency - Switching | 350 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 2 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Total Output Count | 2 |
| Utilized IC / Part | LTC7802 |
| Voltage - Input (Maximum) | 36 V |
| Voltage - Input (Minimum) | 5 V |
| Voltage - Output | 5 VDC, 3.3 V |
