140526
ActiveTE Connectivity AMP Connectors
RT 5.2MM DIA TERMINAL 20-16 AWG TPBR
140526
ActiveTE Connectivity AMP Connectors
RT 5.2MM DIA TERMINAL 20-16 AWG TPBR
Description
General part information
140526

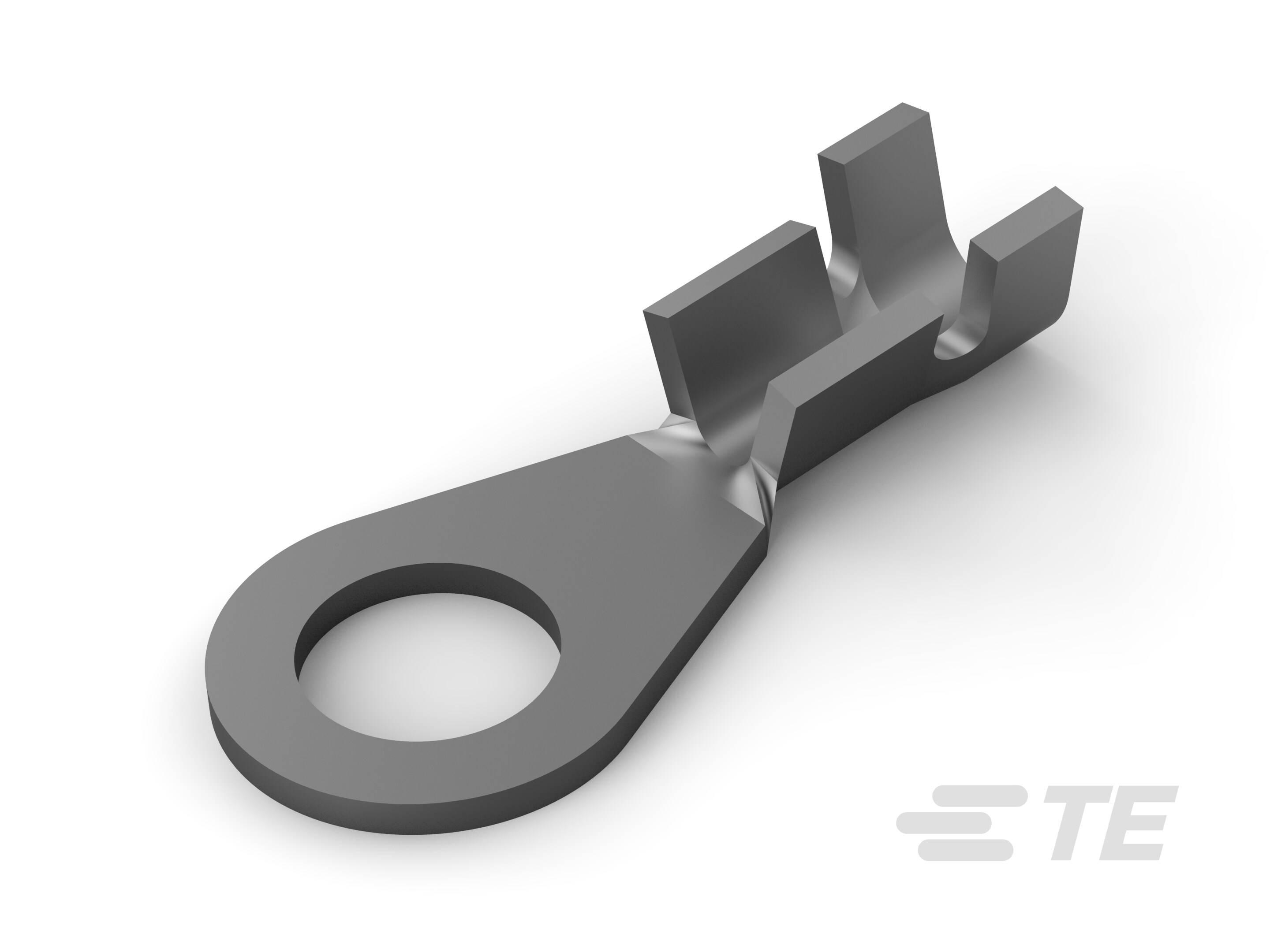

Closed Ring Tongue Terminal, 20 – 16 AWG, #10 Stud, 5.2 mm [.205 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 140526 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.783 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.319 in |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 15 AWG |
