2-2204157-4

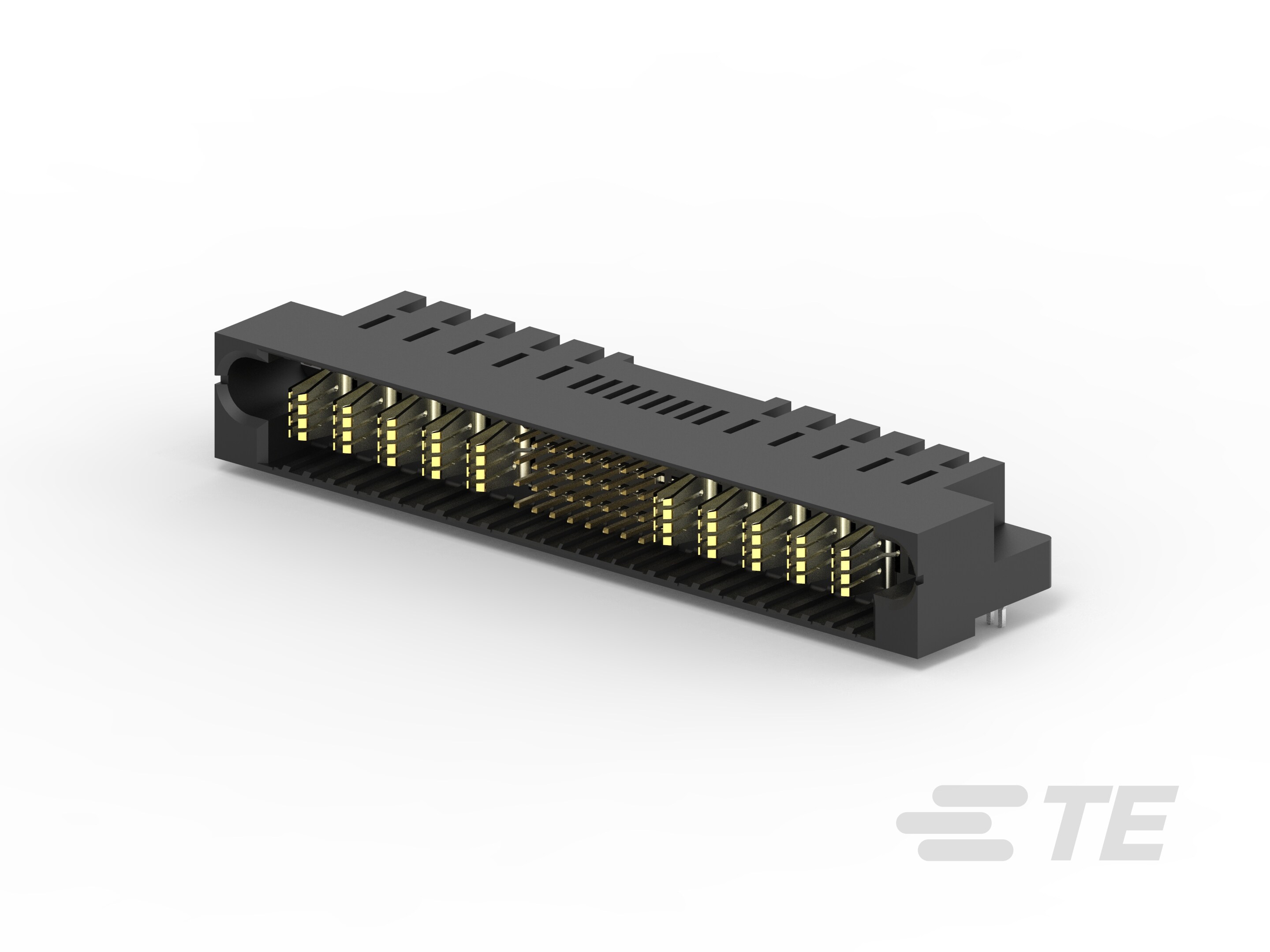

PCB Mount Header, Right Angle, Board-to-Board, 42 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2204157-4 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Blades, Male Pins, Header |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Lock |
| Mounting Type | Through Hole |
| Number of Columns | 18 |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Power Contacts (Typical) | 10 |
| Signal Contacts (Typical) | 32 |
| Termination | Press-Fit |
