LCCA30365-FT1
ActivePasternack
COAX CBL SMA TO N-TYPE 12"
LCCA30365-FT1
ActivePasternack
COAX CBL SMA TO N-TYPE 12"
Description
General part information
LCCA30365-FT1

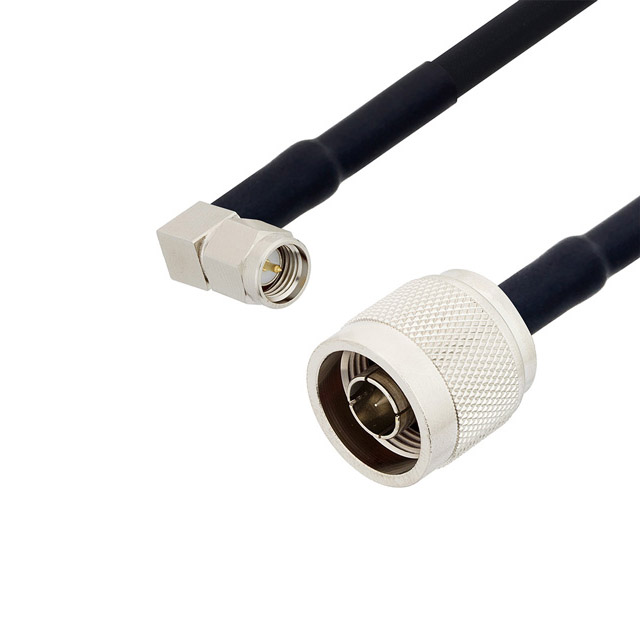

Cable Assembly Coaxial SMA to N-Type RG-223 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30365-FT1 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
