B84113H0000M125
ActiveEPCOS - TDK Electronics
LINE FILTER 250VAC/VDC 25A CHASS
B84113H0000M125
ActiveEPCOS - TDK Electronics
LINE FILTER 250VAC/VDC 25A CHASS
Description
General part information
B84113H0000M125

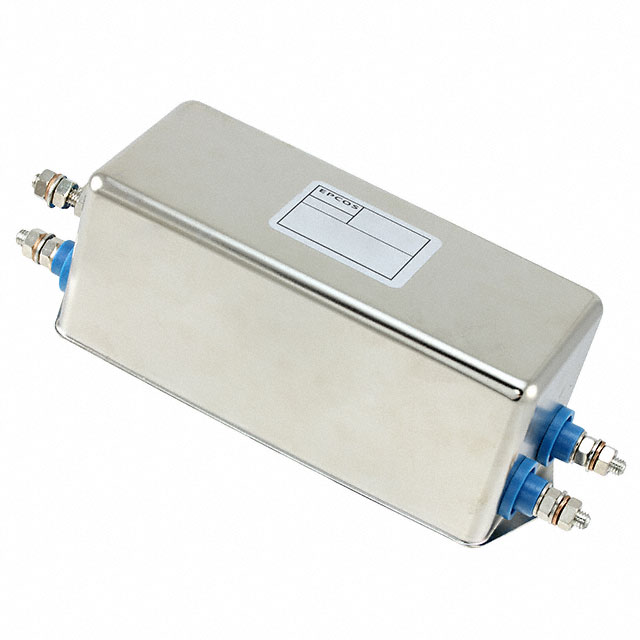

Single Phase EMC/EMI Line Filter 25 A 250V 250V 50/60Hz Two Stage Threaded Post (M5)
Technical Specifications
Parameters and characteristics for this part
| Specification | B84113H0000M125 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cUR, UR, ENEC |
| Configuration | Two Stage |
| Current | 25 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 800 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Size | 5 mm |
| Termination Style | Threaded Post, Threaded Post (M5) |
| Thread Size | M5 |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
