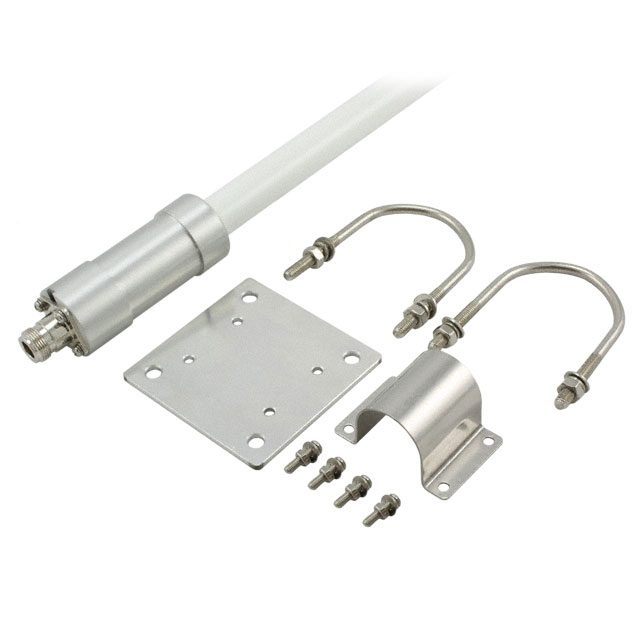

ANT-2.4-OM-CM-01-N
ActiveTE Connectivity AMP Connectors
RF ANT 2.4GHZ WHIP STR N FEM
ANT-2.4-OM-CM-01-N
ActiveTE Connectivity AMP Connectors
RF ANT 2.4GHZ WHIP STR N FEM
Description
General part information
ANT-2.4 Series
2.4GHz Whip, Straight RF Antenna 2.4GHz ~ 2.483GHz 7dBi N Type Female Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2.4-OM-CM-01-N |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.483 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 7 dBi |
| Height (Max) | 25.079 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 20 W |
| Termination | N Type Female |
| VSWR | 1.5 |
