Description
General part information

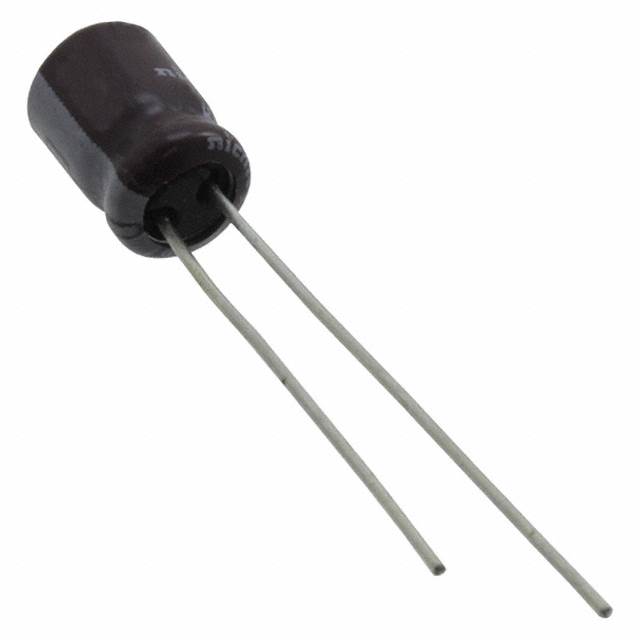

USF1V100MDD1TE
10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | USF1V100MDD1TE |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.315 in |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 55 mA, 110 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
