1521-00002

Active

Amphenol SV Microwave

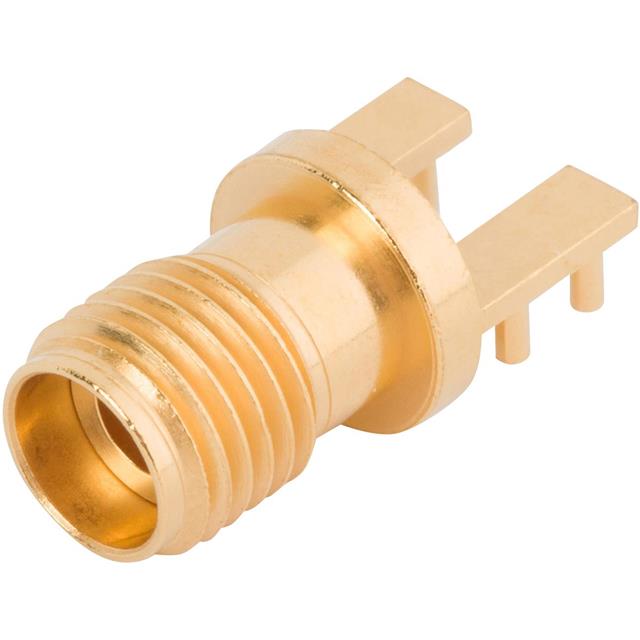

2.92MM JACK R/A 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM JACK R/A 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Impedance	Insertion Loss	Housing Color	Shield Termination	Connector Type	Center Contact Material	Frequency - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Termination	Number of Ports	Mating Cycles	Center Contact Plating	Body Finish	Dielectric Material	Mounting Feature
Amphenol SV Microwave 1521-00002	Brass	50 Ohms	0.25 dB	Gold	Solder	Female Socket Jack	Beryllium Copper	40 GHz	Board Edge End Launch	-65 ░C	165 °C	2.92 mm	Solder	1	500	Gold	Gold
Amphenol SV Microwave 1521-00009	Brass	50 Ohms		Silver	Solder	Female Socket Jack	Beryllium Copper	40 GHz	Board Edge End Launch Panel Mount Right Angle			2.92 mm	Solder	1		Gold	Nickel	Polyetherimide (PEI)	Bulkhead - Front Side Nut
Amphenol SV Microwave 1521-00005	Brass	50 Ohms		Gold	Solder	Female Socket Jack	Beryllium Copper	40 GHz	Board Edge End Launch	-65 ░C	165 °C	2.92 mm	Solder	1	500	Gold	Gold	Polyetherimide (PEI)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
