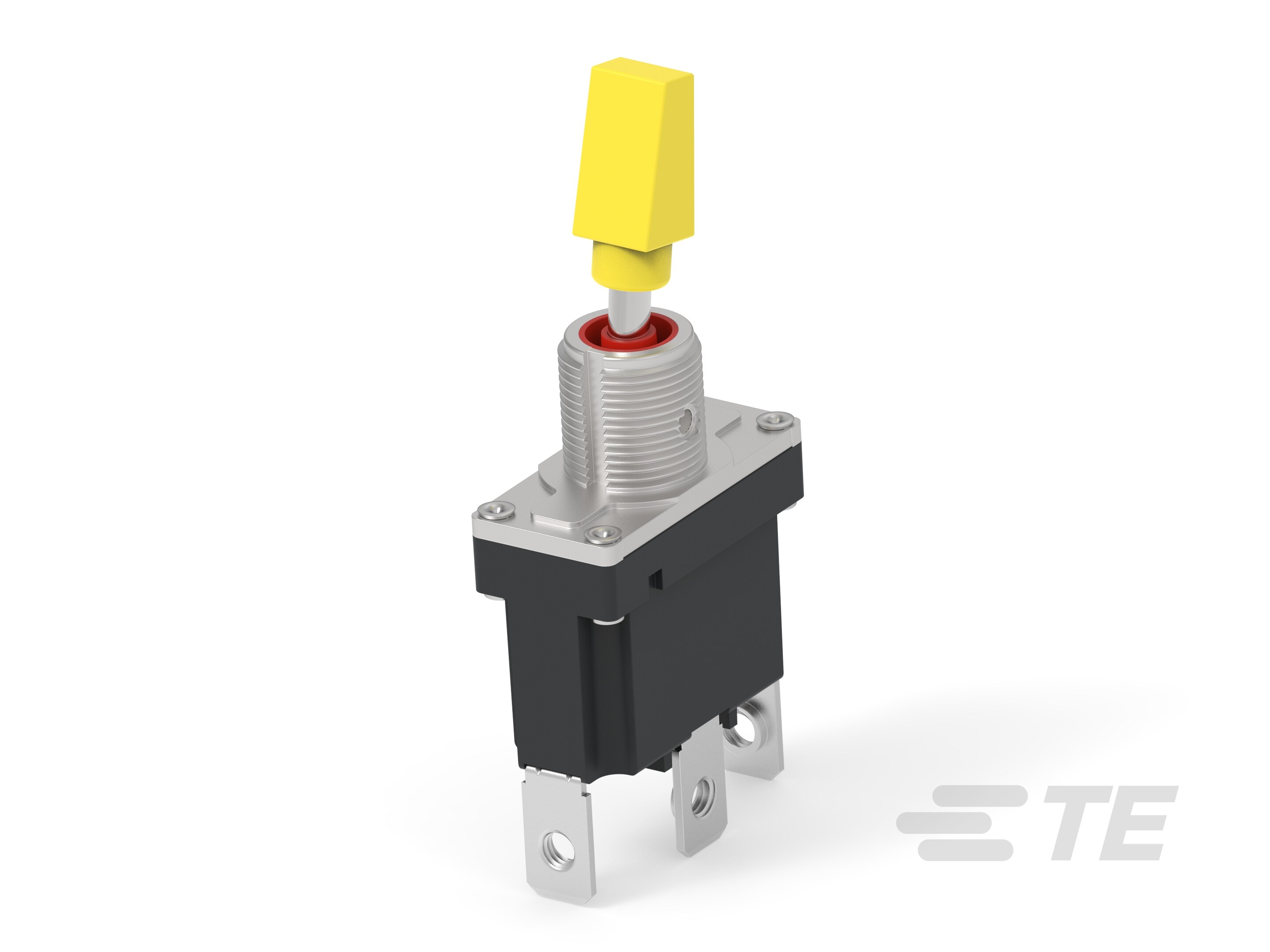

DST TOGGLE 1P 12A SCRW On-none-(On)-1-2493803-8

DST12SY353

Active
TE Connectivity AMP Connectors

DST TOGGLE 1P 12A SCRW (ON)-OFF-(ON)

Find alt
DST TOGGLE 1P 12A SCRW On-none-(On)-1-2493803-8

DST12SY353

Active
TE Connectivity AMP Connectors

DST TOGGLE 1P 12A SCRW (ON)-OFF-(ON)

Find alt

Description

General part information

ALCOSWITCH DST Series

12 A Toggle Switch, Single Pole - Double Throw Configuration (Pole-Throw), (On) Off (On), 3 Position, 250 VAC, Panel Mount, Vertical, ALCOSWITCH DST

Technical Specifications

Parameters and characteristics for this part

SpecificationDST12SY353
Actuator Length22.2 mm
Actuator TypeFlatted
Bushing Thread15/32-32
CircuitSPDT
Current Rating12 A
IlluminationNon-Illuminated
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Mounting TypePanel Mount
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Panel Cutout Diameter11.91 mm
Panel Cutout ShapeCircular
Switch FunctionMom-Off-Mom
Termination StyleScrew Terminal
Voltage Rating - AC125 V
