5352171-1
ActiveTE Connectivity AMP Connectors
CARD EDGE & BACKPLANE CONNECTOR, Z-PACK SERIES, HARD METRIC (HM), RECEPTACLE, 95, 2 MM, PRESS FIT ROHS COMPLIANT: YES
5352171-1
ActiveTE Connectivity AMP Connectors
CARD EDGE & BACKPLANE CONNECTOR, Z-PACK SERIES, HARD METRIC (HM), RECEPTACLE, 95, 2 MM, PRESS FIT ROHS COMPLIANT: YES
Description
General part information
Z-PACK 2mm HM Series

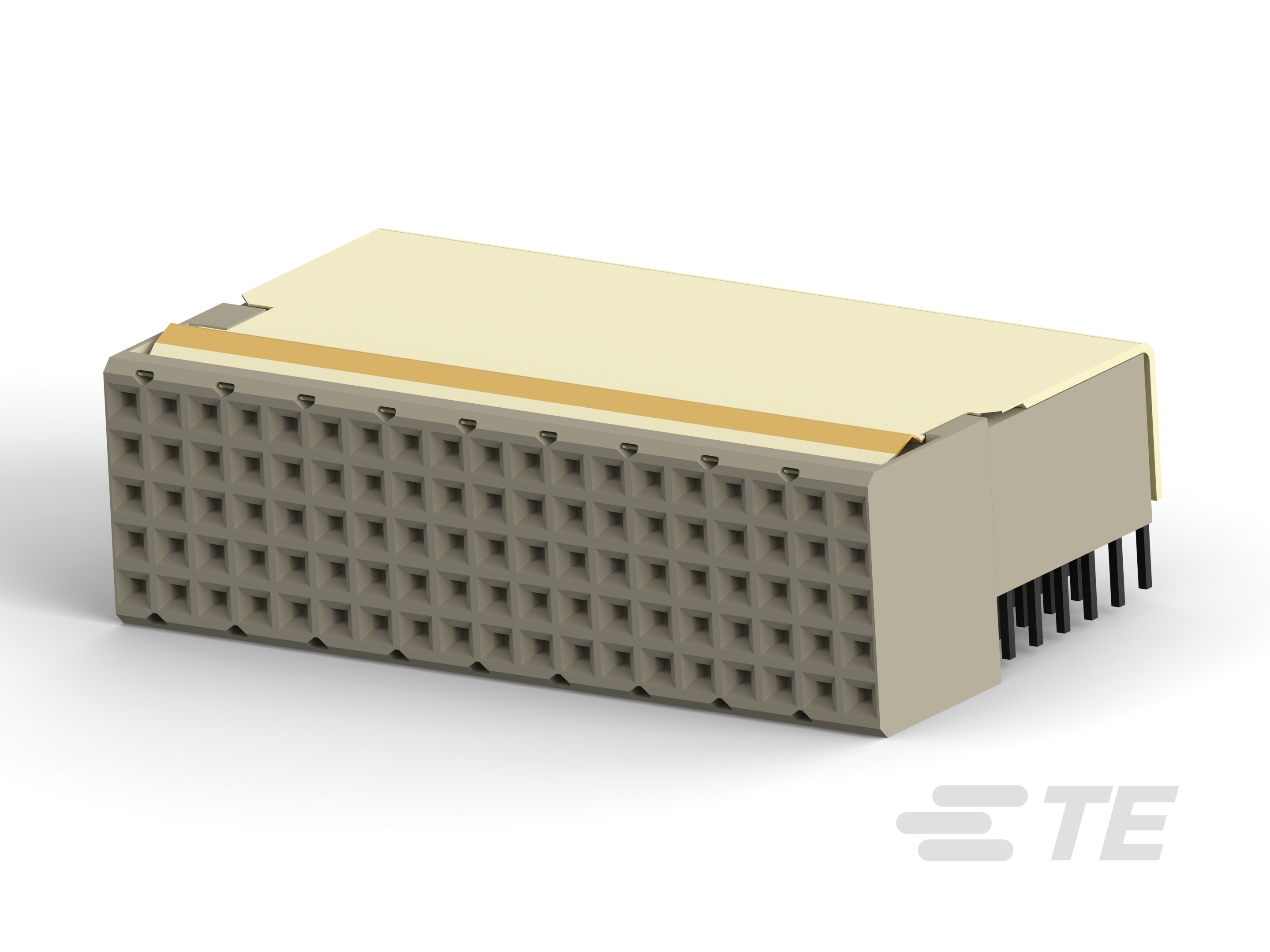

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 19 Column, 5 Row, Mezzanine, 95 Position, 2 mm [.078 in] Centerline, Right Angle, Z-PACK 2mm HM
Technical Specifications
Parameters and characteristics for this part
| Specification | 5352171-1 |
|---|---|
| Connector Style | B 19 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | CompactPCI, J3 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Positions | 95 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.079 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
