Part	Body Material	Connector Type	Body Finish	Connector Style	Mounting Type	Housing Color	Center Contact Material	Fastening Type	Number of Ports	Contact Termination	Shield Termination	Frequency - Max	Cable Group	Impedance	Mounting Feature	Center Contact Plating	Includes	Includes Total Count	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Dielectric Material	Voltage Rating	Insertion Loss	Cable Group Size	Conversion Type	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Style	Adapter Series	Convert From (Adapter End)
McGill Microwave Systems 142256	Brass	Female Socket Plug	Gold	SMB	Flange (2 Hole) Panel Mount
McGill Microwave Systems 142231	Brass	Jack Male Pin	Gold	SMB	Panel Mount	Gold	Brass	Snap-On	1	Solder	Crimp	4 GHz	178A 178B 196 196A M17/93-RG178 RG-178	50 Ohm	Bulkhead Front Side Nut	Gold	Connector Contact Ferrule Heat Shrink Lockwasher Nut	6 pcs	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.3 dB
McGill Microwave Systems 142229	Brass	Female Socket Plug	Gold	SMB	Free Hanging (In-Line)	Gold	Beryllium Copper	Snap-On	1	Solder	Crimp	4 GHz	178A 178B 196 196A M17/93-RG178 RG-178	50 Ohm		Gold	Connector Contact Ferrule Heat Shrink	4 pcs	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.3 dB
McGill Microwave Systems 142288	Brass	Female Socket Plug	Nickel	SMB	Free Hanging (In-Line) Right Angle	Silver	Beryllium Copper	Snap-On	1	Solder	Crimp	3 GHz	178A 178B 196 196A M17/93-RG178 RG-178	50 Ohm		Gold	Connector End Cap Ferrule Heat Shrink Insulator	5 pcs	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.6 dB
McGill Microwave Systems 142225	Brass	Jack Male Pin	Gold	SMB	Free Hanging (In-Line)	Gold	Brass	Snap-On	1	Solder	Solder	4 GHz	Semi Rigid	50 Ohm		Gold			-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.3 dB	0.047 "

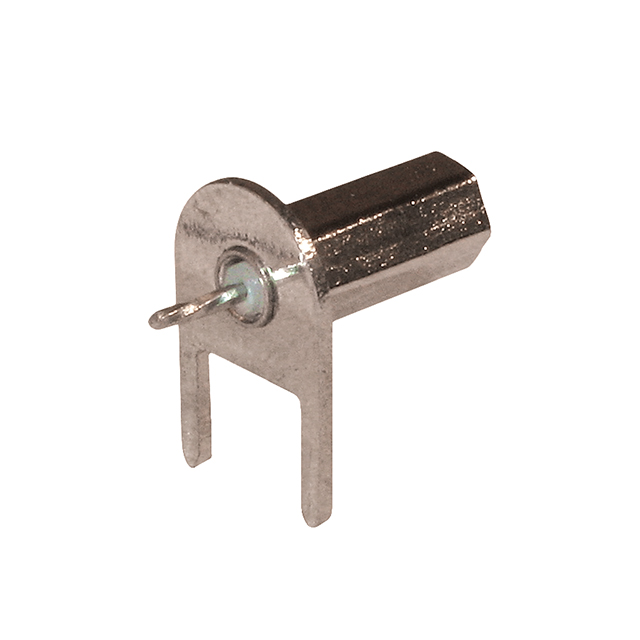

McGill Microwave Systems 142293	Brass		Tin		Right Angle Through Hole
McGill Microwave Systems 142271	Brass		Nickel		Bulkhead - Front Side Nut Panel Mount
McGill Microwave Systems 142251	Brass	Jack Male Pin	Nickel	SMB	Free Hanging (In-Line) Right Angle	Silver	Brass	Snap-On	1	Solder	Crimp	4 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	50 Ohm		Gold	Connector End Cap Ferrule Heat Shrink Insulator	5 pcs	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.6 dB
McGill Microwave Systems 142244	Brass		Gold		Free Hanging (In-Line)		Brass	Snap-On				4 GHz		50 Ohm		Gold			-65 °C	165 °C		Polytetrafluoroethylene (PTFE)				Same Series	Male	SMB Jack	Male Pin	Jack to Jack	Straight	SMB to SMB	Male Pin SMB Jack
McGill Microwave Systems 142241	Brass	Jack Male Pin	Gold	SMB	Free Hanging (In-Line)	Gold	Brass	Snap-On	1	Solder	Crimp	4 GHz	178A 178B 196 196A M17/93-RG178 RG-178	50 Ohm		Gold	Connector Contact Ferrule Heat Shrink	4 pcs	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	335 V	0.3 dB
