Description
General part information
FAKRA RF Connector System Series

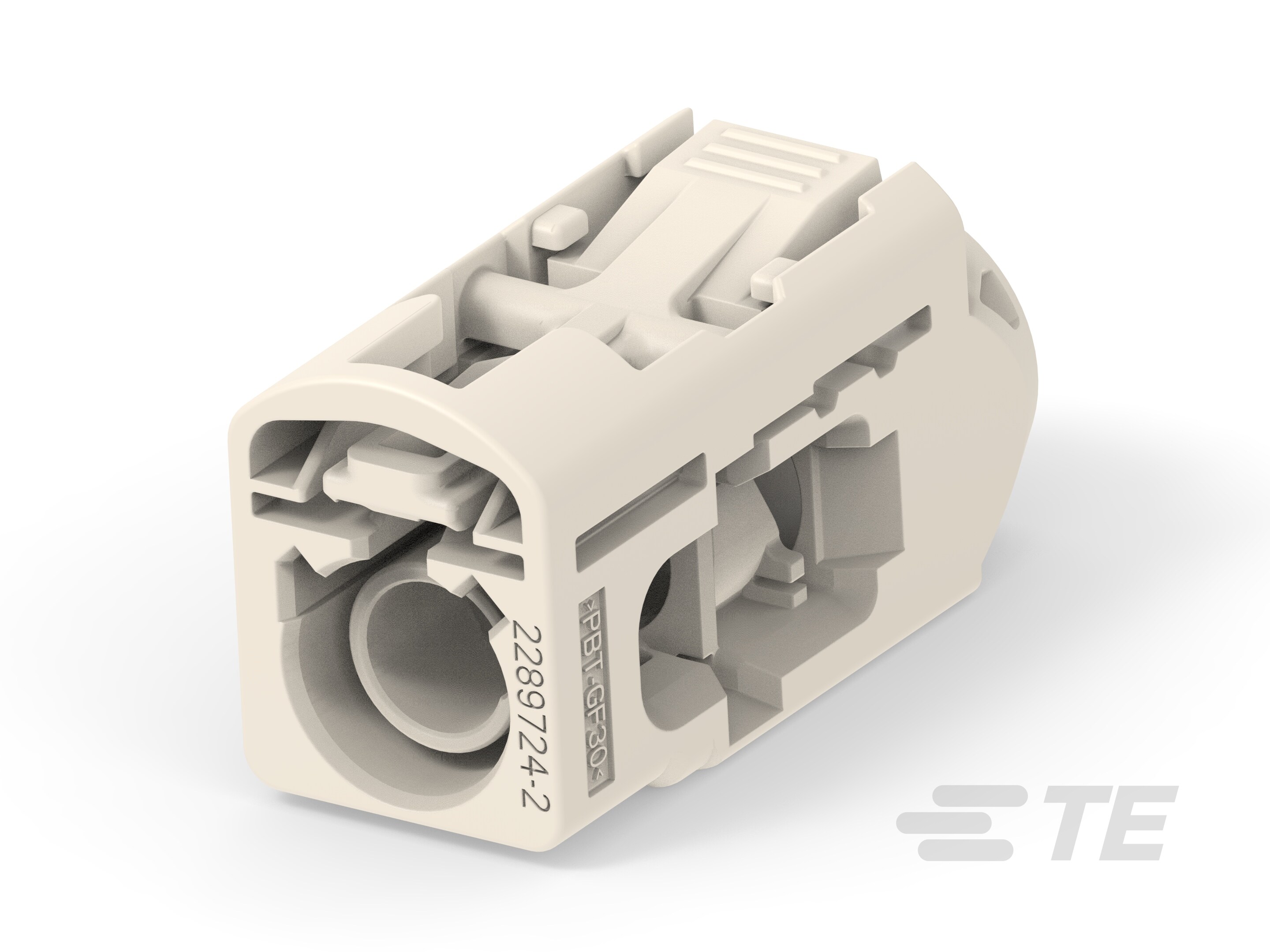

Wire-to-Wire, 1 Position, B Code, Housing for Female Terminals, Crimp, FAKRA RF Connector System, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 2289724-2 |
|---|---|
| Accessory Type | Housing |
| Body Material | Polybutylene Terephthalate, Polyester, PBT |
| Color | Cream |
| Connector Style | Fakra, SMB |
| Features | Code B |
| For Use With/Related Products | SMB, Fakra Female Contacts |
