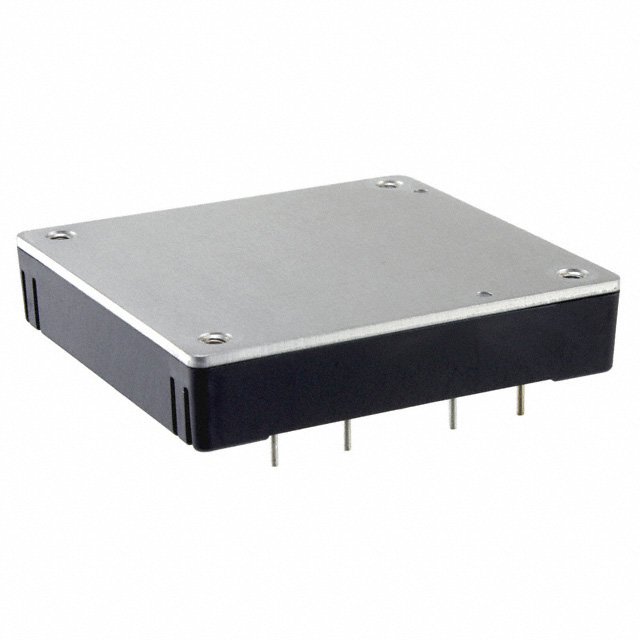

PAH75S48-12
ObsoleteTDK Corporation
DC DC CONVERTER 12V 75W
PAH75S48-12
ObsoleteTDK Corporation
DC DC CONVERTER 12V 75W
Description
General part information
PAH75S48-12
Isolated Module DC DC Converter 1 Output 12V 6.3A 36V - 76V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PAH75S48-12 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 6.3 A |
| Efficiency | 86 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1/2 Brick, 9-DIP Module |
| Power (Watts) | 75 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 2.4 in |
| Size / Dimension Width | 2.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 76 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
