PFC10-1R2F1
ActiveBourns Inc.
RES SMD 1.2 OHM 1% 25W PFC10
PFC10-1R2F1
ActiveBourns Inc.
RES SMD 1.2 OHM 1% 25W PFC10
Description
General part information
PFC10-1R2F1

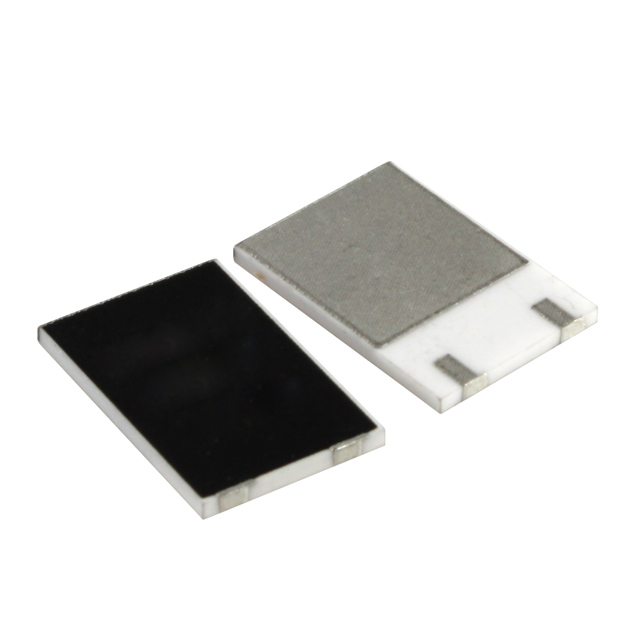

1.2 Ohms ±1% 25W Chip Resistor PFC10 (TO-126 SMT) Current Sense, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC10-1R2F1 |
|---|---|
| Composition | Thick Film |
| Features | Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.041 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | PFC10 (TO-126 SMT) |
| Package Name | PFC10 |
| Power (Watts) | 25 W |
| Resistance | 1.2 Ohm |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.323 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
