Description
General part information

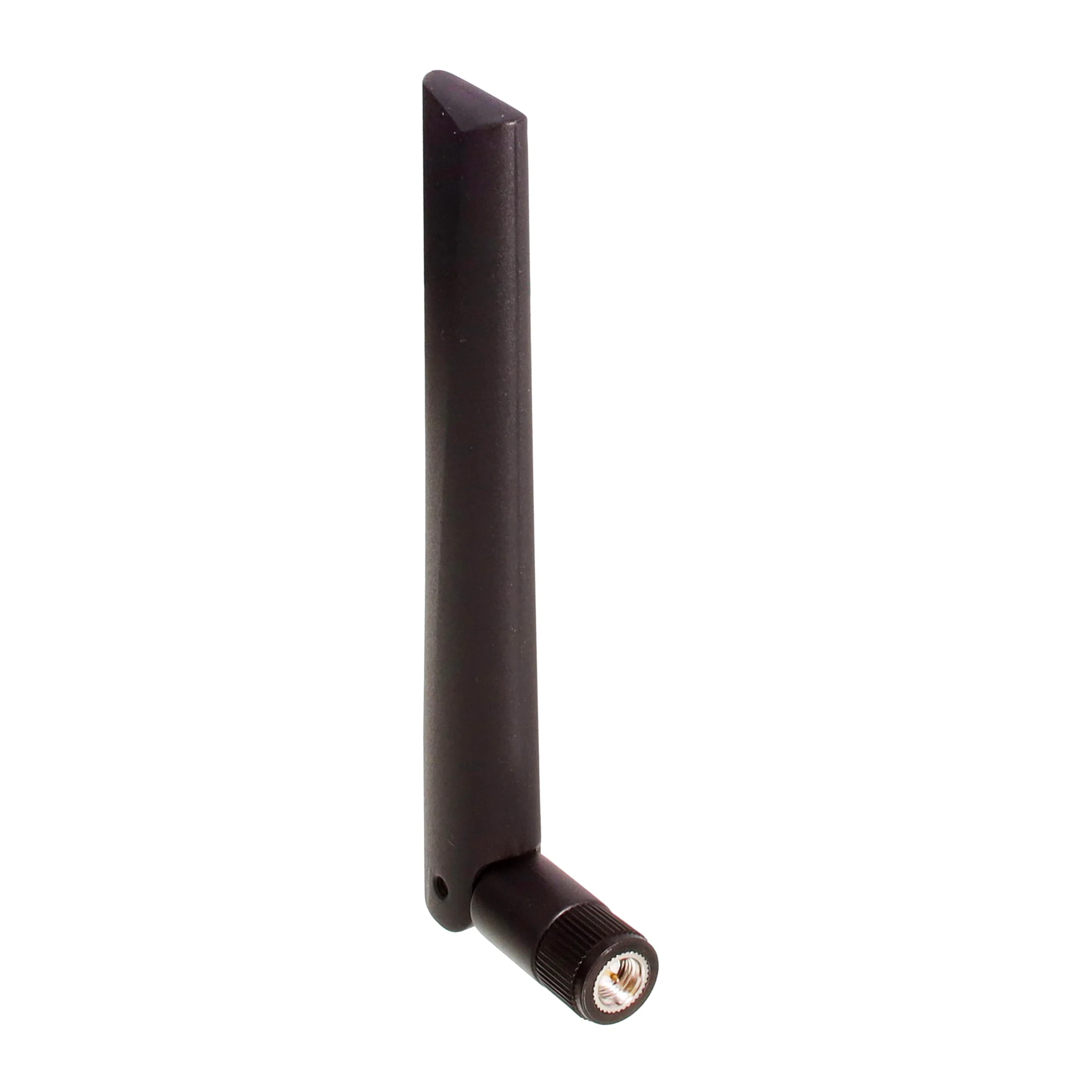

DELTA47/SMAM/36
5G HINGED BLADE ANTENNA FOR 600-
Technical Specifications
Parameters and characteristics for this part
| Specification | DELTA47/SMAM/36 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | UMTS, 4G, Zigbee™, 3G, 2G, LTE, ISM, 5G, Bluetooth, Sigfox, LoRa, GSM |
| Frequency (Center/Band) | 3.95GHz, 1.155GHz, 3.116GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.9 GHz |
| Frequency Range (Band 1) Minimum | 410 MHz |
| Frequency Range (Band 2) Maximum | 5.8 GHz |
| Frequency Range (Band 2) Minimum | 433 MHz |
| Frequency Range (Band 3) Maximum | 5.9 GHz |
| Frequency Range (Band 3) Minimum | 2 GHz |
| Gain | 7.77 dBi |
| Height (Max) | 5.508 in |
| Mounting Type | Direct Mount |
| Number of Bands | 3 |
| Power - Max | 10 VA |
| RF Family/Standard | 802.15.4, General ISM, Bluetooth, Cellular |
| Termination Type | SMA Male |
