19031963A
ObsoleteComair Rotron

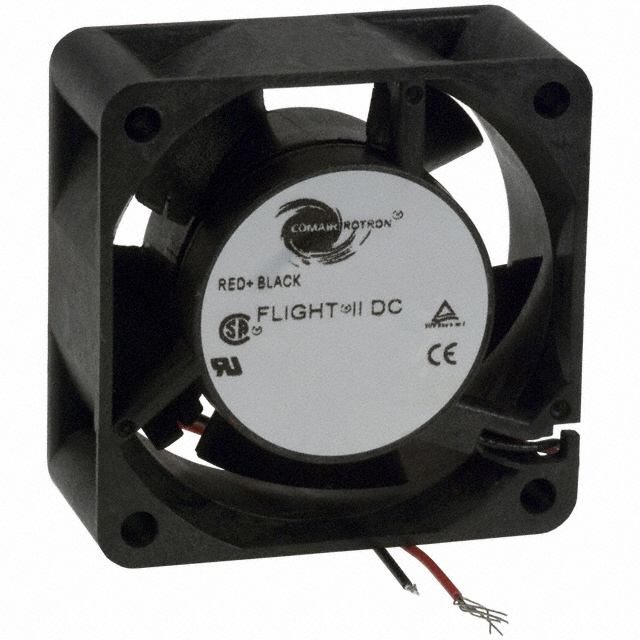

FAN AXIAL 60X25MM BALL 5V FS05B3
19031963A
ObsoleteComair Rotron
FAN AXIAL 60X25MM BALL 5V FS05B3
Description
General part information
19031963A
Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 18.0 CFM (0.504m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 19031963A |
|---|---|
| Air Flow | 18 CFM |
| Bearing Type | Ball |
| Current Rating | 400 mA |
| Fan Type | Tubeaxial |
| Noise | 33.9 dB |
| Power (Watts) | 2 w |
| RPM | 5000 RPM |
| Size / Dimension Height | 60 mm |
| Size / Dimension Length | 60 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.3 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 6 V |
| Voltage Range (Min) | 4.5 VDC |
| Weight | 0.243 lb |
| Width | 25 mm |
