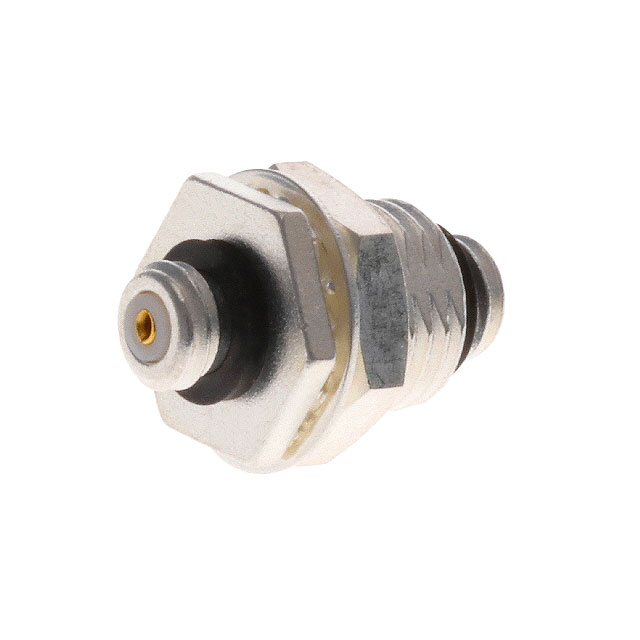

033-0053-0001
ActiveTE Connectivity AMP Connectors
03300530001
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
033-0053-0001
ActiveTE Connectivity AMP Connectors
03300530001
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 033-0053-0001 |
|---|---|
| Adapter Type | Jack to Jack |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 108.42 | |
| 10 | $ 89.91 | |||
| 25 | $ 83.49 | |||
| 50 | $ 78.96 | |||
| 100 | $ 75.55 | |||
033-0053 Series
03300530001
| Part | Dielectric Material | Adapter Type | Mounting Feature | Conversion Type | Center Contact Material | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Body Material | Center Gender | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 033-0053-0001 | Polytetrafluoroethylene (PTFE) | Jack to Jack | Bulkhead | Same Series | Beryllium Copper | 50 Ohms | -55 °C | 125 °C | Silver | Gold | Brass | Female to Female | Straight |
Description
General part information
033-0053 Series
Adapter Coaxial Connector To 50 Ohms
