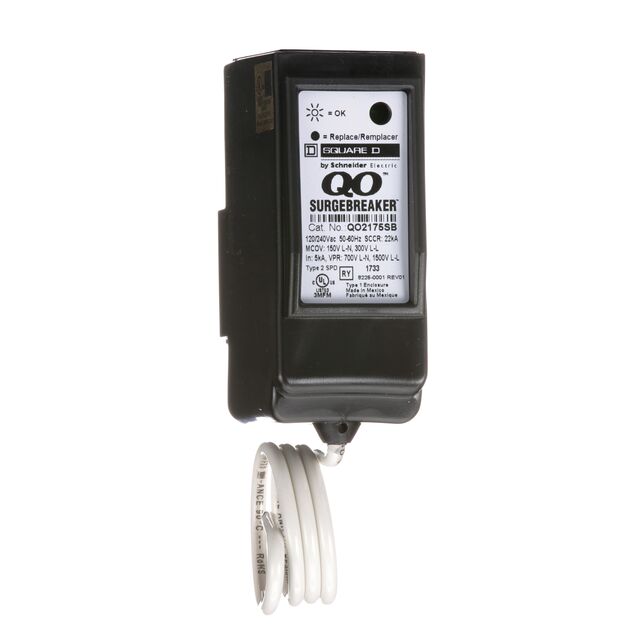

QO2175SB
ActiveSCHNEIDER ELECTRIC
SPD TYPE 2 300VAC MCOV 1 POLE
QO2175SB
ActiveSCHNEIDER ELECTRIC
SPD TYPE 2 300VAC MCOV 1 POLE
Description
General part information
QO2175SB
SPD TYPE 2 300VAC MCOV 1 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | QO2175SB |
|---|---|
| Approval Agency | cULus |
| Current - Discharge (Max) | 22.5 kA |
| Current - Discharge (Nom) | 5 kA |
| Current - Short Circuit Rating (SCCR) | 22 kA |
| Form | Module Only |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 300 VAC |
| Voltage - Protection Rating (VPR) | 1.5 kV |
