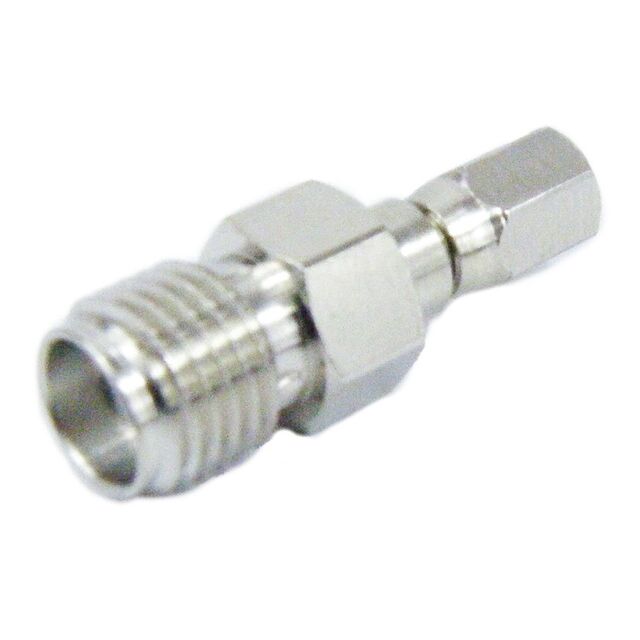

SM2095
ActiveFairview Microwave
ADAPT JACK-PLUG SMA 1.25 VSWR
SM2095
ActiveFairview Microwave
ADAPT JACK-PLUG SMA 1.25 VSWR
Description
General part information
SM2095
Adapter Coaxial Connector SMA Jack, Female Socket To SSMC Plug, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2095 |
|---|---|
| Adapter Series | SMA to SSMC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SSMC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 3 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
