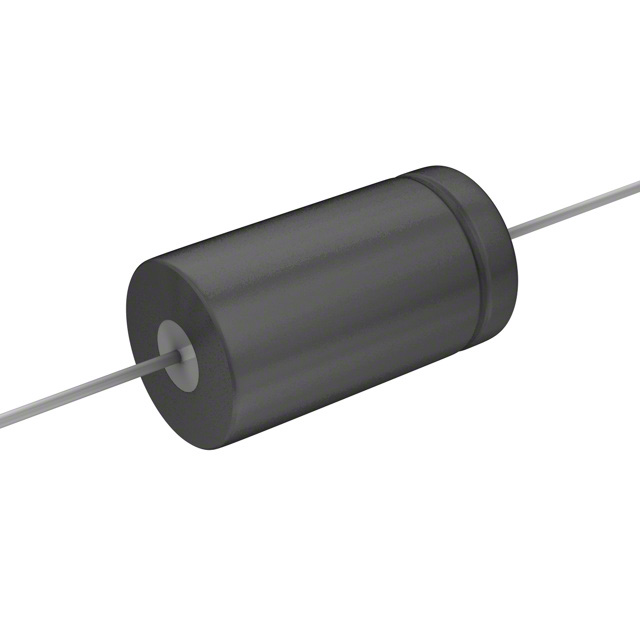

TCX311U030G1C
ObsoleteCornell Dubilier Knowles
CAP ALUM 310UF 30V AXIAL TH
TCX311U030G1C
ObsoleteCornell Dubilier Knowles
CAP ALUM 310UF 30V AXIAL TH
Description
General part information
TCX311U030G1C
310 µF 30 V Aluminum Electrolytic Capacitors Axial, Can 316mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TCX311U030G1C |
|---|---|
| Applications | General Purpose |
| Capacitance | 310 µF |
| ESR (Equivalent Series Resistance) | 316 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 971.28 mA, 852 mA |
| Size / Dimension Diameter | 0.625 in |
| Size / Dimension Length | 1.125 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 30 VAC |
