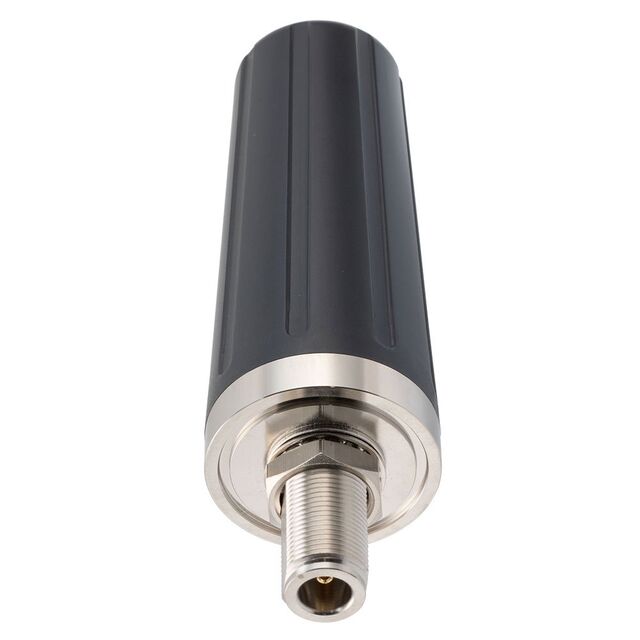

FMANOM1058
ActiveFairview Microwave
ANTENNA TYPE N JACK 617 MHZ-7.12
FMANOM1058
ActiveFairview Microwave
ANTENNA TYPE N JACK 617 MHZ-7.12
Description
General part information
FMANOM1058
RF ANTENNA 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ Dome N Type Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANOM1058 |
|---|---|
| Antenna Type | Dome |
| Applications | Zigbee™, 802.11ax, Wi-Fi, IoT, Bluetooth |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 3.871 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 7.125 GHz |
| Frequency Range (Min) | 617 MHz |
| Gain | 5 dBi |
| Height (Max) | 3.75 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | N Type Female |
| VSWR | 2.5 |
