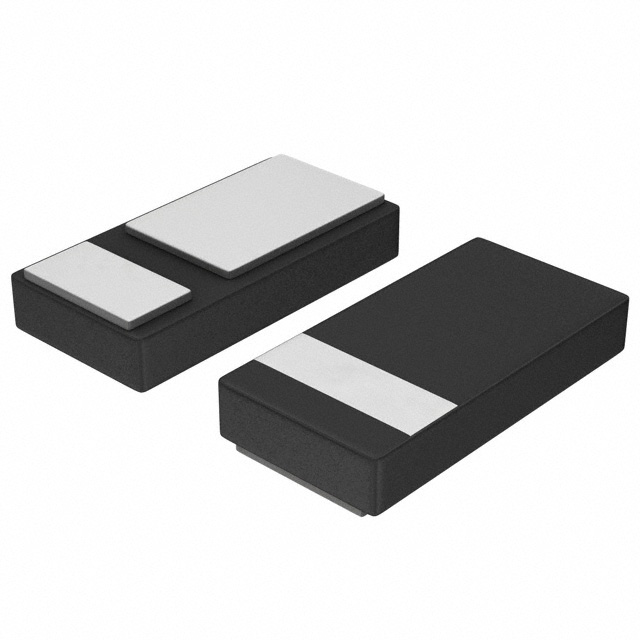

D15V0S1U2LP1608A-7

Active

Diodes Inc

ONE CHANNEL HIGH SURGE TVS DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

D15V0S1U2LP1608A-7

Active

Diodes Inc

ONE CHANNEL HIGH SURGE TVS DIODE

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D15V0S1U2LP1608A-7

Applications	General Purpose
Capacitance @ Frequency	264 pF
Current - Peak Pulse (10/1000µs)	40 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-UFDFN
Power Line Protection	False
Supplier Device Package	U-DFN1608-2
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	17 V
Voltage - Reverse Standoff (Typ)	15 V

D15V0S1U2LP1608A Series

ONE CHANNEL HIGH SURGE TVS DIODE

Part	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Type	Capacitance @ Frequency	Applications	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Mounting Type	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]
Diodes Inc D15V0H1U2LP16-7	8/20µs	90 A	25 V	15 V	U-DFN1616-2	Zener	700 pF	General Purpose	1	15.5 V	Surface Mount	2-UFDFN	2.25 kW	2250 W	-55 °C	150 °C
Diodes Inc D15V0S1U2LP1608-7		35 A		15 V	U-DFN1608-2	Zener	264 pF	General Purpose	1	17 V	Surface Mount	2-UFDFN			-55 °C	150 °C
Diodes Inc D15V0H1U2LP-7B		12 A	27 V	15 V	X1-DFN1006-2	Zener	70 pF	General Purpose	1	16 V	Surface Mount	0402 (1006 Metric)		300 W	-65 °C	150 °C
Diodes Inc D15V0S1U2LP1610-7		48 A		15 V	U-DFN1610-2 (Type B)	Zener	270 pF	General Purpose	1	17 V	Surface Mount	0603 (1610 Metric)			-55 °C	150 °C
Diodes Inc D15V0S1U3LP20-7		13 A	24.6 V	15 V	U-DFN2020-3 (Type C)	Zener		General Purpose	1	16.7 V	Surface Mount	3-UDFN Exposed Pad	4 kW	4000 W	-65 °C	150 °C
Diodes Inc D15V0S1U2LP1608A-7		40 A		15 V	U-DFN1608-2	Zener	264 pF	General Purpose	1	17 V	Surface Mount	2-UFDFN			-55 °C	150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.09
		30000	$ 0.08
		50000	$ 0.07
		100000	$ 0.07

Description

General part information

D15V0S1U2LP1608A Series

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players The D15V0H1U2LP16 may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 and IEC 61000-4-5. The TVS diodes provide effective suppression of ESD voltages: ±30 kV (air discharge) and ±30 kV (contact discharge).

Documents

Technical documentation and resources

Datasheet

Recommended Soldering Techniques

Technical Document

Package PDF

Package File
