SC1210-2R2
ActiveSignal Transformer
FIXED IND 2.2UH 1.15A 169MOHM SM
SC1210-2R2
ActiveSignal Transformer
FIXED IND 2.2UH 1.15A 169MOHM SM
Description
General part information
SC1210-2R2

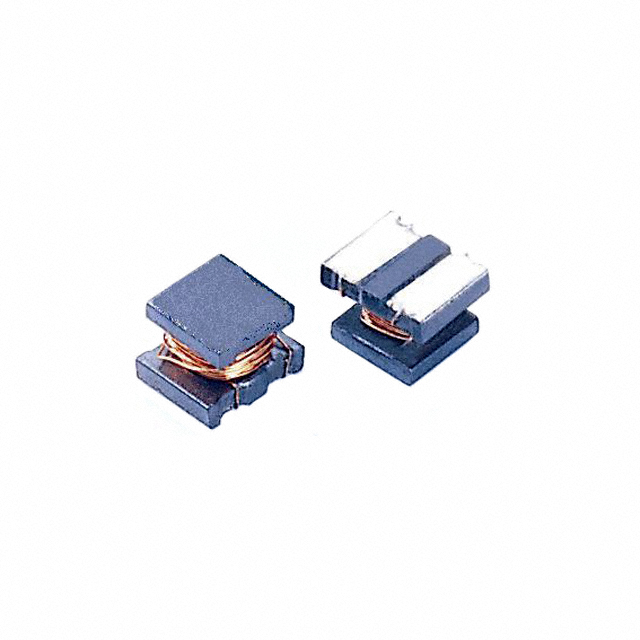

2.2 µH Unshielded Wirewound Inductor 1.15 A 169mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC1210-2R2 |
|---|---|
| Current - Saturation (Isat) | 0.6 mA |
| Current Rating | 1.15 A |
| DC Resistance (DCR) (Max) | 169 mOhm |
| Height - Seated (Max) | 0.087 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.106 in |
| Tolerance | 20 % |
| Type | Wirewound |
