FMC00237-50CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 19.68
FMC00237-50CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 19.68
Description
General part information
FMC00237-50CM

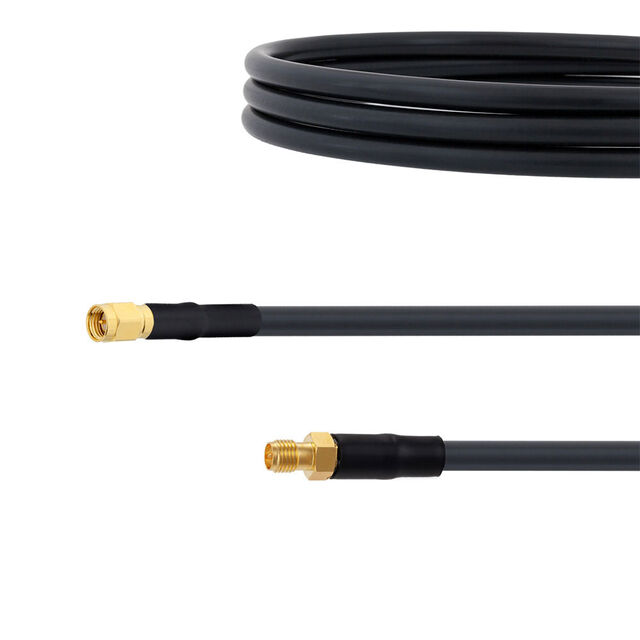

Cable Assembly Coaxial RP-SMA to SMA LMR 240 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00237-50CM |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, SMA |
