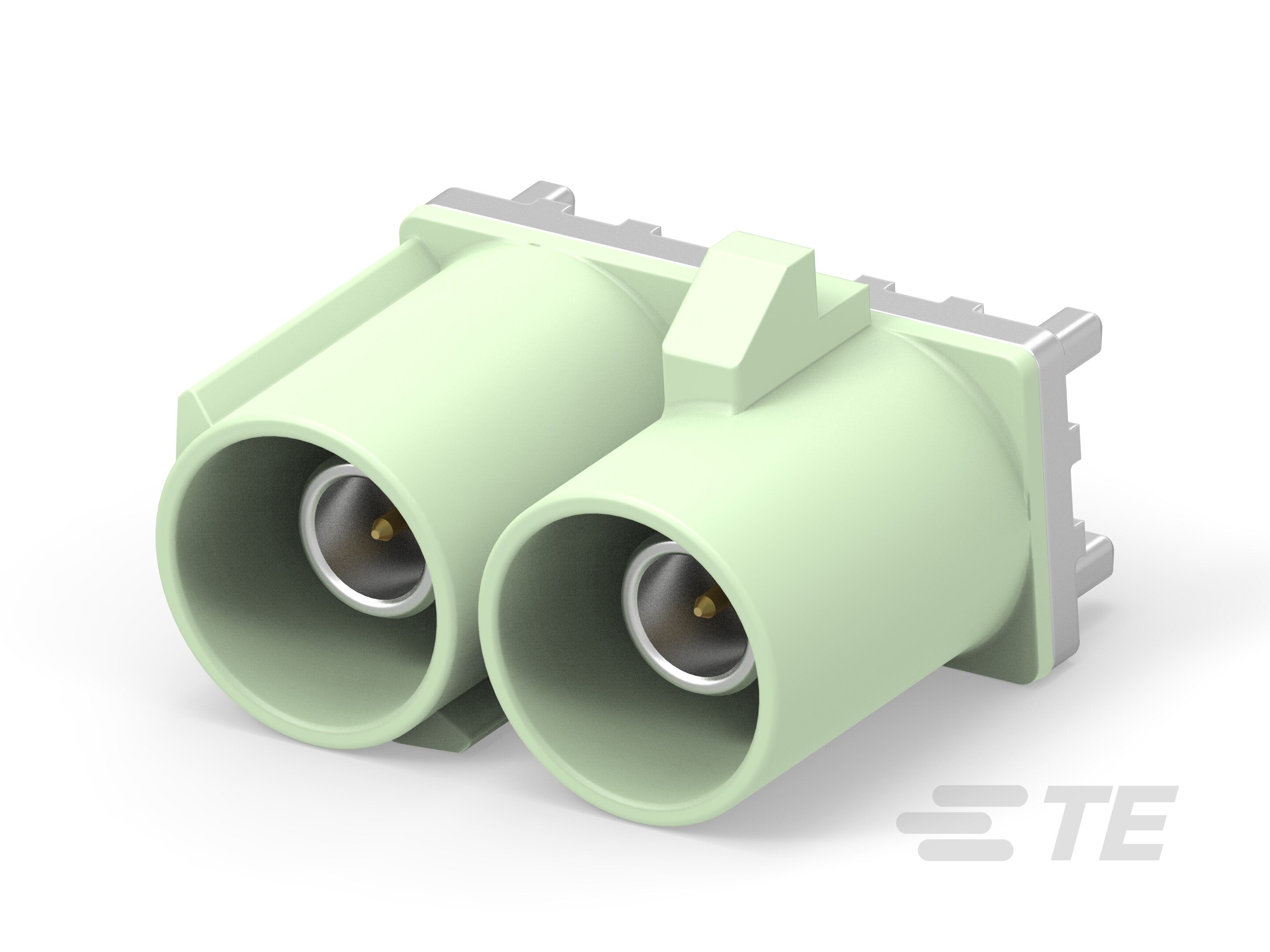

FAKRA 2 POS., VERT, TH, ASS'Y-1-2272788-3

6-2272788-3

Active
TE Connectivity AMP Connectors

FAKRA 2 POS., VERT, TH, ASS'Y

Find alt
FAKRA 2 POS., VERT, TH, ASS'Y-1-2272788-3

6-2272788-3

Active
TE Connectivity AMP Connectors

FAKRA 2 POS., VERT, TH, ASS'Y

Find alt

Description

General part information

FAKRA RF Connector System Series

Cable-to-Board, Vertical, 2 Position, Board Mount, N Code, 8 mm [.315 in] Centerline, Signal, FAKRA RF Connector System, Data Connectivity Headers

Technical Specifications

Parameters and characteristics for this part

Specification6-2272788-3
Center Contact MaterialBrass
Connector StyleFakra, SMB
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeLocking Ramp
FeaturesCode N
Frequency - Max6000 MHz
Housing ColorGreen, Pastel
Impedance50 Ohm
Mounting TypeThrough Hole
Number of Ports2
Shield TerminationSolder
